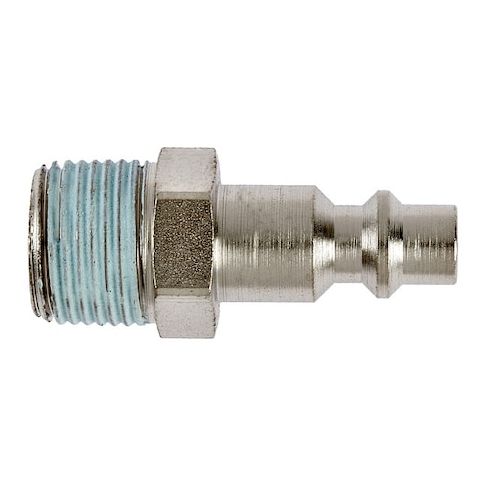

Quick Connect Plug, Industrial Interchange, 1/8 in Male NPTF, Brass, Nickel Plated MPN:21SFAN10MXN
The Parker Quick Connect Socket is a reliable and efficient solution for industrial applications. This brass socket features a 1 1/16in length and a male NPTF plug, making it easy to connect and disconnect hoses and fittings. With its durable construction and quick connection capabilities, this socket is ideal for use in various industries, including manufacturing, oil and gas, and chemical processing. Its compact design and lightweight construction make it easy to handle and store, reducing downtime and increasing productivity. The Parker Quick Connect Socket is a valuable tool for any industrial setting where quick and secure connections are essential.
Top product features:
- Quick connect functionality allows for easy and secure connections
- Brass construction provides corrosion resistance and durability
- NPTF threading enables secure and leak-free connections
Top product applications:
- Air Compressor Systems
- Automotive Repair Shops
- Industrial Process Control
The PARKER - 21SFAN10MXN is a push-to-connect socket fitting that forms a sealed connection when mated with a compatible plug (leak performance depends on proper installation and compatible components). It is used for fluid or air transfer applications within the specified pressure and temperature ranges. It provides push-to-connect coupling with a spring-loaded release sleeve for connection and disconnection without hand tools. Construction uses a brass body with a nickel-plated finish for use with compatible industrial interchange systems that meet the listed specifications/standards. The fitting accommodates a 1/8" body size and has a male hose fitting with a 1/8" connection size, using an NPTF thread type and a ball coupling locking mechanism.
Key Features:
- - Material: Brass body with nickel-plated finish
- - Connection type: 1/8" NPTF male thread
- - Hose fitting gender: Male
- - Hose fitting size: 1/8 inch
- - Coupling locking type: Ball lock
- - Max working pressure: 250 psi @ 70°F
- - Max flow rate: 12 SCFM
- - Seal material: Nitrile
- - Overall length: 1.06 inches
- - Max outside diameter: 0.5 inches
- - Includes locking balls and valve spring components
- - Temperature range: -4°F to 212°F
- - Interchange type: Industrial
- - Standards: A-A-59439
- ISO 6150-B
- MIL-C-4109F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 2.62
- Package Height: 1.75
- Package Weight: 0.23
