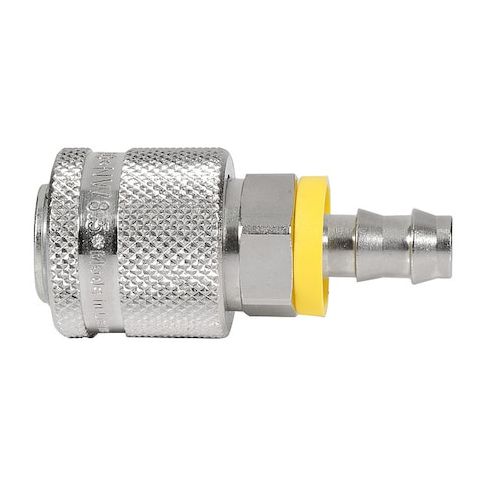

Quick Connect Socket, Industrial Interchange, 3/8 in Hose Barb, Steel, 300 psi MPN:30KATP10SPN

• The PARKER - 30KATP10SPN is a quick connect socket for push-to-connect coupling and uncoupling without tools. It features a female coupling component that accepts and locks the matching plug to form a coupled connection with a ball-locking mechanism and sealing components. This socket is compatible with industrial interchange systems as specified by the A-A-59439

• ISO 6150-B
• MIL-C-4109F standards. Its steel body with a nickel-plated finish is rated for use with hoses having a 3/8 in inner diameter (per specification). Rated for pneumatic and hydraulic/general fluid service within the specified temperature range of -4°F to 212°F.

  This socket provides push-to-connect coupling between hoses/tools/equipment using the specified locking and sealing components.

  Key Features:


  • - Connection type: hose barb
  • barb size for 3/8 in hose I.D. (per specification)
  • - Coupling component: Socket with ball locking mechanism
  • - Material: Steel body with a nickel-plated finish
  • - Includes locking balls and valve spring as integral parts of the assembly.
  • - Valve type: Poppet valve integrated to control fluid or air flow during connection.
  • - Maximum flow rate: 90 scfm
  • - Maximum outside diameter: 1 3/16 in and overall length of 2 9/16 in.
  • - Seal material: nitrile elastomer
  • - Interchange type: Industrial Interchange standard, compatible with related couplers and plugs.
