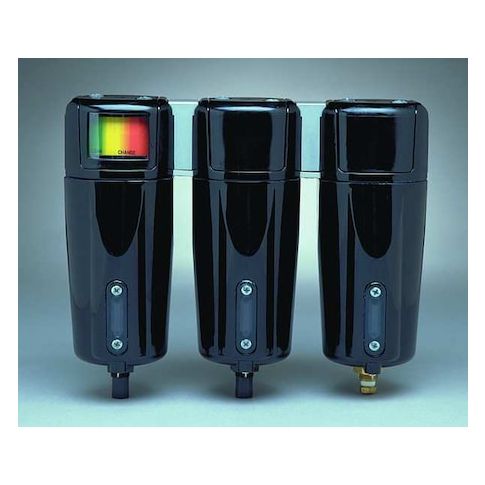

8000 Series Three Stage Sterile Air Filter Assembly MPN:3B-8312N-3A1
This 8000 Series Three Stage Sterile Air Filter Assembly from Parker is a reliable solution for compressed air treatment in systems handling oil, water, and particulate contaminants. Its modular design with steel filter bowls and automatic draining ensures efficient operation, while differential pressure indication provides real-time monitoring. Suitable for applications in cleanrooms, laboratories, and pharmaceutical manufacturing, this filter assembly provides high-efficiency coalescing filtration, removing particles as small as 0.01 micron. With a maximum airflow of 223 cfm and operating pressure of 250 psi, it meets the demands of high-precision processes, ensuring clean and reliable air supply.
Top product features:
- Three-stage sterile air filter assembly with coalescing filtration.
- Rated for particle removal down to 0.01 micron.
- Automatic draining with differential pressure indication.
Top product applications:
- Laboratory equipment
- Medical facilities
- Pharmaceutical manufacturing
This item is a three-stage sterile air filter assembly configured for compressed air treatment in systems handling oil, water, and particulate contaminants. It features a modular design with steel filter bowls, automatic draining, and differential pressure indication. The assembly connects through NPT air inlet and outlet ports and operates within specified pressure, temperature, and airflow limits.
Key Features:
- Filter Assembly Type: Three-stage sterile air filter assembly with coalescing filtration.
- Filtration Rating: Rated for particle removal down to 0.01 micron.
- Flow Capacity: Maximum airflow specified at 223 cfm.
- Pressure Rating: Maximum operating pressure specified at 250 psi, with a minimum operating pressure of 15 psi.
- Temperature Rating: Maximum operating temperature specified at 130°F.
- Connections: 1-1/2 in NPT air inlet and outlet connections.
- Construction: Steel filter bowls with Buna-N seals.
- Included Features: Automatic drain, differential pressure indicators, and high-efficiency coalescing filter element.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.20
- Package Width: 19.80
- Package Height: 14.90
- Package Weight: 44.90
