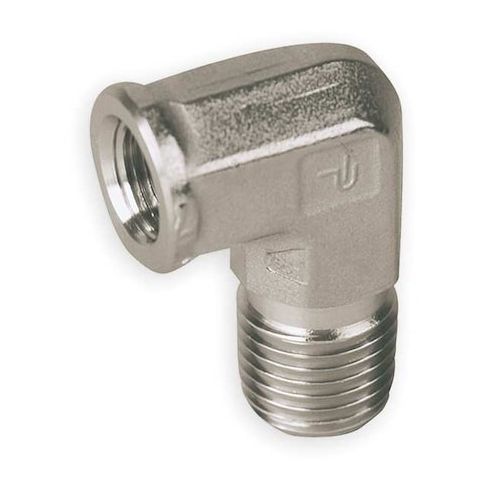

3/8 in 90° Street Elbow, 316 Stainless Steel, Male x Female NPT, 5, 000 psi Max Pressure MPN:6-6 SE-SS

• The PARKER - 6-6 SE-SS is a 90 Degree Street Elbow stainless steel pipe fitting that changes flow direction by 90° through its elbow shape. It features one male (street) NPT connection and one female NPT connection, both sized 3/8 inch nominal pipe size with 3/8-18 thread size. Made from 316 stainless steel

• suitable for air, natural gas, and oil service per listed applications. Overall length: 2 3/16 in
• enables direct connection between MNPT and FNPT ends without requiring a short nipple. The fitting is rated for a maximum operating pressure of 5,000 psi and can operate within a temperature range of -425 to 1200 Degrees F. It complies with ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards. Key Features:

  • - Material: 316 Stainless Steel
  • - Connection Type: MNPT x FNPT (Male NPT to Female NPT)
  • - Nominal Pipe Size: 3/8 in on both ends
  • - Thread Size: 3/8-18
  • - Maximum Operating Pressure: 5,000 psi
  • - Temperature Range: -425 to 1200 Degrees F
  • - Hex Size: 7/8 in for wrenching
  • - Overall Length: 2 3/16 in
  • - Pre-Applied Thread Sealant: No
  • - Seal Included: No
  • - Applications: Air, Natural Gas, Oil
  • - Product Standards: ANSI B31.1
  • ANSI B31.3
  • ANSI B1.20.1
