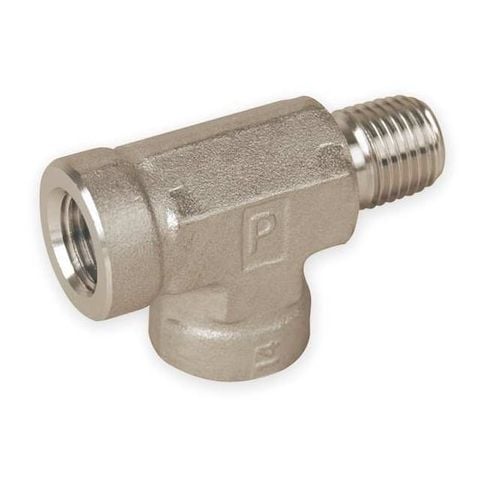

Tee, SS, Thrd 1/8", Thrd 1/8", Thrd 1/8" MPN:2-2-2 ST-SS

• The PARKER - 2-2-2 ST-SS is a stainless steel Street Tee pipe fitting designed to join three pipe runs in a T-shape, allowing fluid or gas flow to be split or combined with a 90° branch. It is suitable for use with air, natural gas, and oil systems. Constructed from 316 stainless steel, this fitting offers corrosion resistance and is rated for operation within the specified pressure and temperature ranges. The connections include one male NPT thread (Side A) and two female NPT threads (Sides B and C), all sized at 1/8 inch nominal pipe size.

  Key Features:

  • - Material Grade: 316 Stainless Steel
  • - Fitting Shape: Street Tee with T configuration
  • - Connection Types: MNPT x FNPT x FNPT (Male on Side A, Female on Sides B and C)
  • - Nominal Pipe Size: 1/8 inch for all connection sides
  • - Maximum Operating Pressure: 5,500 psi
  • - Temperature Range: -425° to 1200° Fahrenheit
  • - ANSI B31.1 Standard compliant
  • - Hex Size for wrenching: 9/16 inch
  • - Overall Length: 1 7/16 inches
  • Fitting Length: 1.22 inches
  • - No pre-applied thread sealant or included seals
  • - Color: Silver
