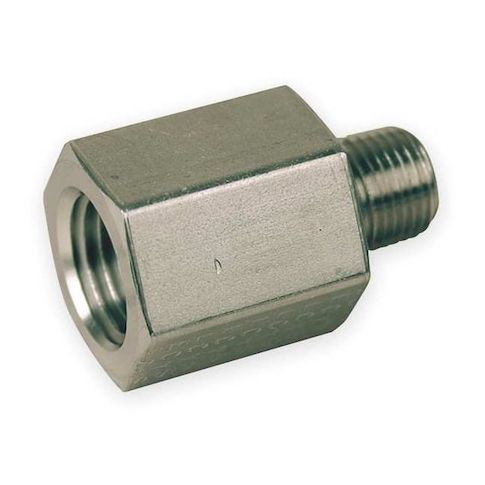

3/8" x 1/4" FNPT x MNPT 316 SS Reducing Adapter MPN:6-4 RA-SS
Connect pipes and fittings of different diameters with the Parker 6-4 RA-SS 316 stainless steel reducing adapter. Designed for use in air, natural gas, and oil systems, this adapter provides a 3/8-18 to 1/4-18 NPT reduction, ensuring a secure and reliable connection. With a maximum operating pressure of 5,300 psi and a temperature range of -425 to 1200 Degrees F, this adapter meets ANSI standards and is suitable for a variety of applications, including industrial, commercial, and residential settings. Its 316 stainless steel construction ensures durability and resistance to corrosion, making it a reliable choice for demanding systems.
Top product features:
- 316 Stainless Steel construction
- Female NPT connection of 3/8 inch on one side and a male NPT connection of 1/4 inch on the other side
- Rated for use with air, natural gas, and oil systems within the specified ratings (5,300 psi max, -425 to 1200 F)
Top product applications:
- Air
- Natural Gas
- Oil
The PARKER - 6-4 RA-SS is a 316 stainless steel reducing adapter designed to connect two pipes or fittings of different diameters. It features a female NPT connection of 3/8 inch on one side and a male NPT connection of 1/4 inch on the other side, providing a 3/8-18 (female) NPT to 1/4-18 (male) NPT reduction. Rated for use with air, natural gas, and oil systems within the specified ratings (5,300 psi max, -425 to 1200 F), it is rated for a maximum operating pressure of 5,300 psi. The fitting conforms to ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards, with a temperature range from -425 Degrees to 1200 Degrees F.
Key Features:
- - Material: 316 Stainless Steel
- - Connection Types: Female NPT (3/8 inch) x Male NPT (1/4 inch)
- - Overall Length: 1.44 in (1 7/16 in)
- - Hex Size for wrenching: 7/8 in
- - Thread Size: 3/8-18 (female) x 1/4-18 (male)
- - Maximum Operating Pressure: 5,300 psi
- - Temperature Range: -425 Degrees to 1200 Degrees F
- - Applications: Air, Natural Gas, Oil
- - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.80
- Package Height: 1.20
- Package Weight: 0.65
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
