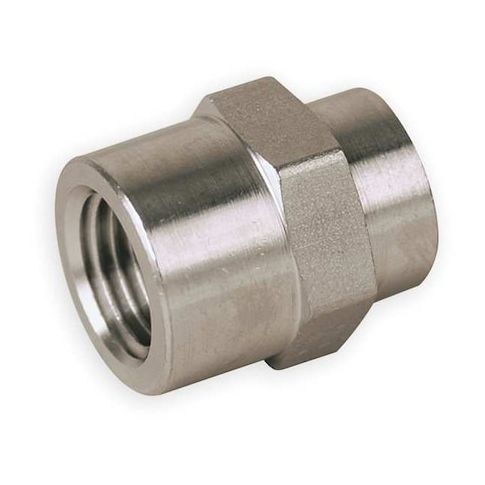

1/8" FNPT SS Hex Coupling MPN:2-2 FHC-SS
The Parker 2-2 FHC-SS is a reliable and durable stainless steel hex coupling designed for connecting 1/8 inch NPT female-threaded pipes or fittings in a straight line. Suitable for conveying fluids such as air, natural gas, and oil, this coupling offers corrosion resistance and strength within a compact 0.75 inch length. Its hexagonal exterior allows for wrench tightening and loosening, facilitating easy installation and maintenance. With a maximum operating pressure of 6,400 psi and a temperature range of -425 to 1,200 degrees Fahrenheit, this fitting meets the ANSI B31.1 standard and is ideal for use in a variety of industrial applications.
Top product features:
- The product is constructed from 316 stainless steel, providing corrosion resistance and strength.
- The fitting features a hexagonal exterior, allowing for wrench tightening and loosening.
- The coupling is designed to connect two 1/8 inch NPT female-threaded pipes or fittings in a straight line.
Top product applications:
- Conveying air in pneumatic systems
- Conveying natural gas in industrial applications
- Conveying oil in hydraulic systems
The PARKER - 2-2 FHC-SS is a stainless steel hex coupling designed to connect two 1/8 inch NPT female-threaded pipes or fittings in a straight line. Constructed from 316 stainless steel, this fitting provides corrosion resistance and strength suitable for conveying fluids such as air, natural gas, and oil. The hexagonal exterior allows for wrench tightening and loosening, facilitating installation and maintenance. It is rated for operation within the specified pressure and temperature ranges. The fitting conforms to the ANSI B31.1 standard and features a compact length of 0.75 inches.
Key Features:
- - Material: 316 Stainless Steel for durability and corrosion resistance
- - Connection type: 1/8 in FNPT female threads on both ends
- - Hex size: 5/8 inch across flats, allowing wrench use
- - Maximum operating pressure: 6,400 psi
- - Temperature range: -425 to 1,200 degrees Fahrenheit
- - Overall length: 0.75 inches
- - Suitable for use with air, natural gas, and oil
- - Meets ANSI B31.1 standard
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.60
- Package Height: 0.60
- Package Weight: 0.03
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
