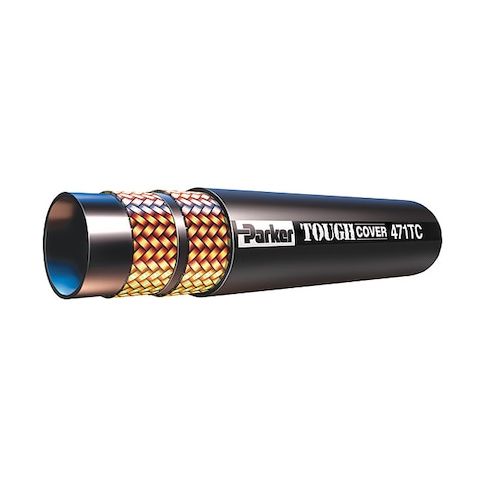

Hydraulic Hose, 1/4" I.D., 475 ft. L, Black MPN:471TC-4-RL
Hydraulic Hose, 1/4" I.D., 475 ft. L, Black
This high-performance hydraulic hose from Parker is designed for demanding applications where reliability and durability are crucial. With a 1/4 inch inside diameter and 475 foot length, it provides a robust solution for transferring fluids in a variety of industries. The synthetic rubber tube and cover ensure flexibility and resistance to abrasion, while the stainless steel braid reinforcement provides added strength and safety. Suitable for applications such as construction, manufacturing, and marine use, this hose operates effectively in temperatures ranging from -40 to 212 degrees Fahrenheit, with a maximum working pressure of 5,800 psi.
Top product features:
- Hydraulic hose with a 2-layer stainless steel braid reinforcement for added strength and durability.
- Resistant to vacuum up to 28 in Hg, allowing for use in applications with low pressure environments.
- Capable of withstanding a maximum working pressure of 5,800 psi at 70 F, with a 4:1 safety factor for added safety.
Top product applications:
- Construction Equipment
- Marine Systems
- Industrial Manufacturing
Hydraulic Hose, Hose Inside Dia. 1/4 in, Hose Outside Dia. 33/64 in, Hose Length 475 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Stainless Steel, Hose Braid Layers 2, Hose Color Black, Series 43, Vacuum Rating 28 in Hg, Max. Working Pressure @ 70 F 5,800 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 212 Degrees F, Standards ABS, BV, DNV, EN 857 2SC, ISO 11237 2SC, SAE J1942, USCG HF
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.10
- Package Width: 16.10
- Package Height: 19.20
- Package Weight: 100.00
Product info last updated on January 20, 2026 12:07am UTC
Category: Hydraulic Cylinders and Equipment
