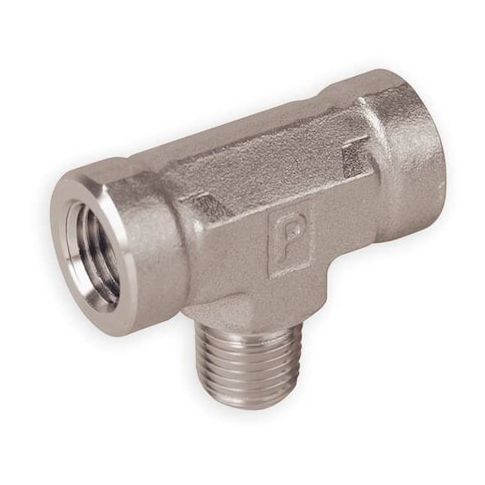

1/2" MNPT 316 SS Branch Tee MPN:8-8-8 MBT-SS
This 1/2in MNPT 316 SS Branch Tee from Parker is a versatile and reliable pipe fitting designed for high-pressure applications. Constructed from durable 316 stainless steel, it can withstand extreme temperatures and corrosive environments, making it ideal for use in air, natural gas, and oil systems. The fitting's 90° branch allows for efficient splitting or combining of flow, while its NPT connections ensure secure and leak-free connections. With a pressure rating of 4,500 psi and a temperature range of -425°F to 1,200°F, this branch tee is perfect for use in industrial, commercial, and heavy-duty applications.
Top product features:
- Connects three 1/2 inch pipe runs with a 90° branch, facilitating the splitting or combining of flow.
- Features threaded NPT connections with female threaded ends on two sides and a male threaded end on the third, allowing for secure pipe attachment.
- Constructed from 316 stainless steel, providing compatibility with air, natural gas, and oil within specified pressure and temperature ratings.
Top product applications:
- Natural Gas Distribution Systems
- Oil and Gas Drilling and Production Equipment
- High-Temperature Industrial Processes
The PARKER - 8-8-8 MBT-SS is a branch tee stainless steel pipe fitting designed to connect three 1/2 inch pipe runs with a 90° branch, facilitating the splitting or combining of flow. Constructed from 316 stainless steel, it is compatible with air, natural gas, and oil within the specified pressure and temperature ratings. The fitting features threaded NPT connections with female threaded ends on Side A and Side B and a male threaded end on Side C. It has an overall length of approximately 2 7/16 inches and is silver in color.
Key Features:
- - Material: 316 stainless steel.
- - Connections: FNPT x FNPT x MNPT (female on Side A and B, male on Side C) with 1/2 inch nominal pipe size on all connections.
- - Pressure Rating: Maximum operating pressure of 4,500 psi.
- - Temperature range: -425 Degrees to 1200 Degrees F.
- - Thread Size: 1/2-14 NPT threads at all connection ends.
- - Wrench Size: Hex size of 1-1/16 inches for installation support.
- - Standards Compliance: Designed to meet ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.00
- Package Height: 1.20
- Package Weight: 0.40
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
