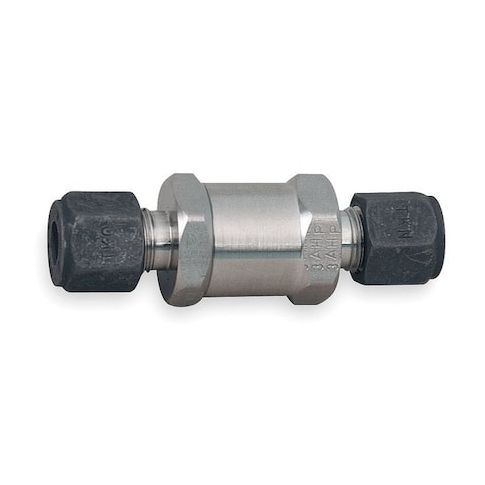

3/8" CPI® Stainless Steel Instrumentation Check Valve MPN:6Z-C6L-10-SS
This 3/8in CPI Stainless Steel Instrumentation Check Valve from Parker is a reliable and durable solution for various applications. Suitable for use in high-pressure systems, it features a cracking pressure of 10 psi and a maximum water pressure of 6000 psi at 100°F. The valve is made from 316 stainless steel and has a fluorocarbon seat and seal, ensuring long-lasting performance in extreme temperatures from -15°F to 400°F. Ideal for use in chemical processing, pharmaceutical, and food and beverage industries, this valve provides precise control and minimizes backflow, making it an essential component for safe and efficient operation.
Top product features:
- Stainless steel body provides corrosion resistance
- Fluorocarbon seal ensures leak-tight shut-off
- Inline poppet mechanism allows for precise control over fluid flow
Top product applications:
- Steam Power Plants
- Chemical Processing Plants
- Pharmaceutical Manufacturing Facilities
PARKER 6Z-C6L-10-SS is a 3/8 in CPI(R) stainless steel instrumentation check valve for one-way flow control in small-bore fluid and gas lines. This inline poppet valve is constructed with 316 stainless steel components for specified corrosive-service applications, with compression x compression connections, a 10 psi cracking pressure, and compatibility with horizontal or vertical mounting.
Key Features:
- 316 stainless steel body and 316 stainless steel spring
- Instrumentation check valve with inline poppet mechanism and one-way flow design
- 3/8 in compression x compression connections for tube line installation
- For media: fluids and gas
- Cv: 2.09
- Flow: 2.09 gpm
- Maximum operating pressure: 6,000 psi
- Max. water pressure: 6000 psi @ 100 Degrees F
- Operating temperature range: -15 Degrees F to 400 Degrees F
- Seal material: FKM/Fluorocarbon
- Seat material: FKM/Fluorocarbon
- Mounting orientation: horizontal or vertical
- Overall length: 3.27 in
- Hex size: 1 in
- Standards: ASTM A 276
