1/2" MNPT 316 SS Hex Long Nipple MPN:8-8 MHLN-SS 2.0
The PARKER - 8-8 MHLN-SS 2.0 is a versatile and reliable 316 stainless steel pipe fitting designed for connecting female-threaded components in high-pressure applications. Suitable for conveying air, natural gas, and oil, this fitting provides a secure and leak-resistant connection. Its hexagonal center section offers a wrenching surface for easy installation and removal, while its 2-inch length allows for flexibility in piping configurations. Rated for operation at pressures up to 6,600 psi and temperatures from -425 to 1200°F, this fitting meets ANSI standards and is ideal for use in industries such as oil and gas, power generation, and chemical processing.
Top product features:
- 316 stainless steel construction provides corrosion resistance for use in harsh environments.
- The hexagonal center section provides a wrenching surface for easy installation and removal.
- The fitting is designed to connect two female-threaded components with 1/2-inch MNPT male threads on both ends.
Top product applications:
- Conveying air
- Conveying natural gas
- Conveying oil

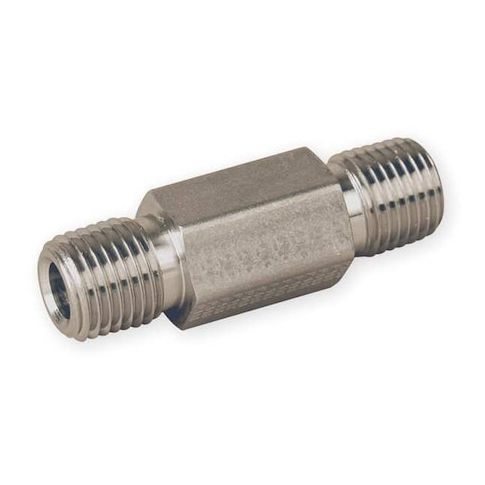

The PARKER - 8-8 MHLN-SS 2.0 is a 2-inch long hex long nipple stainless steel pipe fitting designed to connect two female-threaded components with 1/2-inch MNPT male threads on both ends. Constructed from 316 stainless steel, suitable for conveying air, natural gas, and oil. The hexagonal center section provides a wrenching surface to assist with installation and removal. This fitting is rated for operation at pressures up to 6,600 psi and meets ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards. It is rated for use within a temperature range of -425 to 1200 degrees Fahrenheit.
Key Features:
- - Material: 316 stainless steel
- - Overall length: 2.0 inches
- - Connection type: Male National Pipe Tapered Thread (MNPT) on both ends
- - Nominal pipe size: 1/2 inch on both sides
- - Hex size (across flats): 7/8 inch
- - Maximum operating pressure: 6,600 psi
- - Temperature range: -425 to 1200 degrees Fahrenheit
- - Application suited for air, natural gas, and oil
- - Meets ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards
- - Low lead compliance: Not Compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.18
