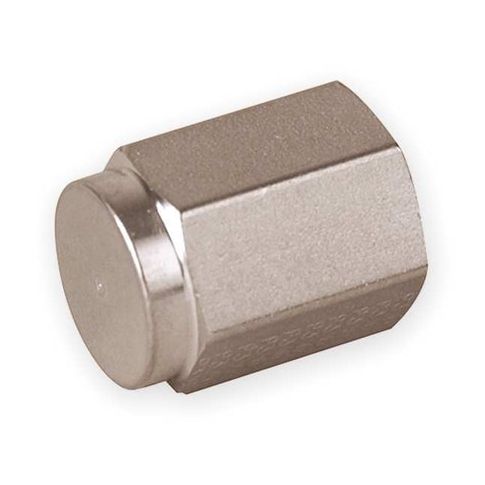

1/4" FNPT 316 SS Cap MPN:4 CP-SS
This 1/4in FNPT 316 SS Cap from Parker is a stainless steel pipe cap designed to terminate pipe ends and provide a secure seal with compatible mating components. Constructed from 316L stainless steel, it features a bright finish and cored plug construction for easy installation and removal with a 3/4 inch hex drive wrench. Ideal for use in high-pressure and high-temperature applications, this cap is rated for operation up to 6,600 psi and -425 to 1200 °F. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this cap provides reliable sealing and protection against corrosion and damage.
Top product features:
- Material: 316L Stainless Steel with a bright surface finish
- Fitting shape: Cap, for sealing pipe ends
- Connection type: Female National Pipe Thread (FNPT), 1/4 inch -18 thread size
Top product applications:
- Pipe termination and sealing in high-pressure and high-temperature applications
- Sealing pipe ends in industrial processes that require stainless steel components
- Terminating pipe ends in hydraulic systems that operate above 6,600 psi
The PARKER - 4 CP-SS is a stainless steel pipe cap intended to terminate pipe ends and provide a seal with compatible mating components
- rated for operation within the specified maximum pressure and temperature ranges (up to 6,600 psi and -425 to 1200 °F).
This cap is constructed from 316L stainless steel and features a bright finish. It is made with a cored plug construction and a 3/4 inch hex drive style, allowing for installation and removal with a compatible wrench. The cap with FNPT (Female National Pipe Thread) connection rated for termination and pressure testing within the specified limits (up to 6,600 psi and -425 to 1200 °F)
- references to future line extensions are omitted from the description.
Key Features:
- - Material: 316L Stainless Steel with a bright surface finish
- - Fitting shape: Cap, for sealing pipe ends
- - Connection type: Female National Pipe Thread (FNPT), 1/4 inch -18 thread size
- - Nominal pipe size: 1/4 inch
- - Length: 0.91 in (7/8 inch overall length)
- - Hex size: 3/4 inch, compatible with standard wrenches
- - Maximum operating pressure: 6,600 psi
- - Temperature range: -425 Degrees to 1200 Degrees F
- - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
- - Includes no pre-applied thread sealant or additional sealing components
- - Magnetic: No
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.90
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
