Three Stage Sterile Air Filter Assembly MPN:3B-8208N-3A1

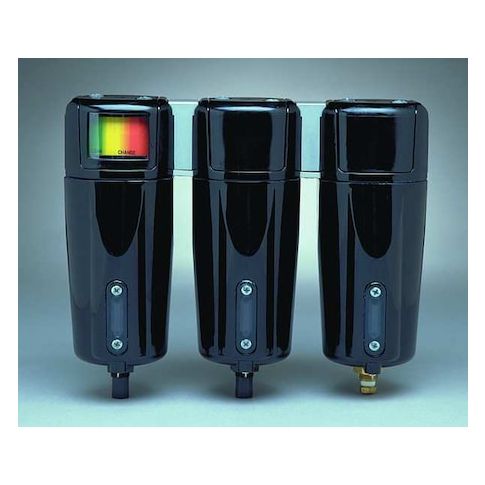

Three Stage Sterile Air Filter Assembly
The Parker 3-Stage Sterile Air Filter Assembly is a high-performance solution for critical applications requiring ultra-pure air. Engineered to remove 0.01 micron particles, including oil, water, and dirt, this filter assembly ensures the integrity of sensitive processes. Ideal for use in pharmaceutical, biotechnology, and medical industries, it provides a reliable defense against contamination and ensures consistent product quality. With a maximum flow rate of 154 cfm and operating pressures up to 250 psi, this filter assembly is suitable for a wide range of applications, including cleanrooms, laboratories, and manufacturing facilities. Its compact design and automatic drain feature make it a convenient and efficient choice.
Top product features:
- Three-stage coalescing filter removes 99.99% of contaminants as small as 0.01 micron.
- Automatic drain allows for continuous operation without the need for manual intervention.
- Filters oil, water, and dirt from the air, making it suitable for use in applications where these substances are present.
Top product applications:
- Medical Facilities
- Laboratories
- Manufacturing Plants
3-Stage Sterile Air Filter Assembly, Filter Type Coalescing, Air Inlet Size 1 in, Air Inlet Type NPT, Maximum Flow Rate 154 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 130 Degrees F, Overall Width 13 in, Overall Height 13 in, Drain Included Yes, Filter Bowl Material Steel, Drain Type Automatic, Series 8000, Air Outlet Size 1 in, Air Outlet Type NPT, Filter Rating 0.01 micron, For Fluid Type Oil, Water, For Substance Type Dirt, Oil, Water
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.20
- Package Width: 15.40
- Package Height: 9.70
- Package Weight: 19.65
Product info last updated on May 3, 2026 6:35am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
