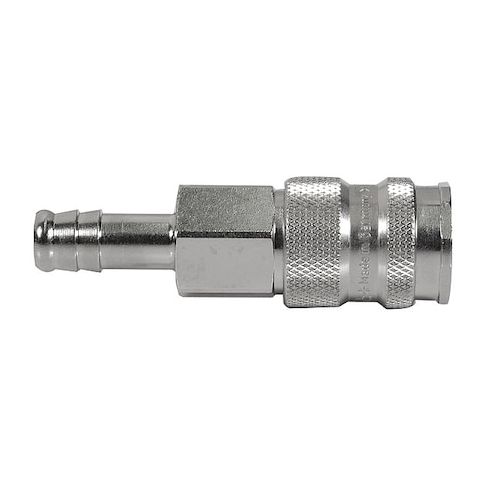

Quick Connect Socket, Industrial Interchange, 1/4 in Body, 3/8 in Hose Barb, Brass, Valved MPN:23KATF09MPN
The Parker Quick Connect Socket is a reliable and efficient solution for industrial applications. Its brass construction ensures durability and resistance to corrosion, while the hose barb design provides a secure connection to hoses and fittings. With a length of 74 mm, this socket is ideal for use in a variety of industries, including manufacturing, oil and gas, and chemical processing. Its quick connect feature allows for easy assembly and disassembly, reducing downtime and increasing productivity. Suitable for applications where high pressure and flow rates are required, this socket is a valuable addition to any industrial setup.
Top product features:
- Quick Connect Socket connects hoses and fittings with ease
- Brass construction provides corrosion resistance and durability
- Male hose barb design allows for secure attachment to hoses
Top product applications:
- Hydraulic system maintenance
- Pneumatic tool attachment
- Fuel injection system
The PARKER - 23KATF09MPN is a quick connect socket made of brass, designed as the female half of a quick-connect coupling. It provides a locking connection using the integrated ball locking mechanism, accepting and locking the matching plug to form a connection using the included seal material (nitrile) within the rated pressure and temperature ranges. This socket features a hose barb connection type with a 3/8 in barb size and a 1/4 in body size, intended for use with industrial interchange standards. The integrated poppet valve controls fluid/air flow during connection and disconnection, which connects using a push-to-connect mechanism and releases using a spring-loaded release sleeve. Rated operational temperature range: -4°F to 212°F. Rated maximum working pressure: 300 psi.
Key Features:
- - Material: Brass construction with nickel-plated finish
- - Includes (4) locking balls for secure coupling
- - Hose fitting gender: Male
- - Seal material: Nitrile
- - Rated max. flow rate: 36.5 SCFM
- - Overall length: 2.91 in (74 mm)
- - Max. outside diameter: 23 mm
- - Valve type: Poppet
- - Compatible with industrial interchange components using ISO 6150-B / MIL-SPEC 4109 interchange standards (as specified for this part)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 2.62
- Package Height: 1.75
- Package Weight: 2.21
