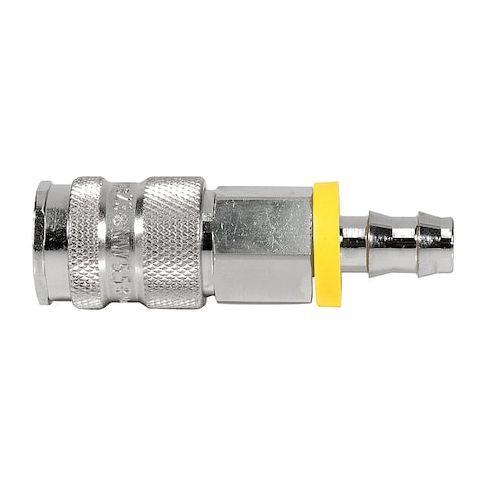

Quick Connect Socket, Brass, 2 3/4" L MPN:23KATP10MPN
Quick Connect Socket, Brass, 2 3/4" L
The Parker Quick Connect Socket is a reliable and efficient solution for industrial applications. This brass socket features a 2 3/4in length and a male hose barb design, allowing for easy connection and disconnection of hoses and fittings. Its durable construction ensures a secure seal, reducing the risk of leaks and ensuring a smooth flow of fluids. Ideal for use in a variety of industries, including manufacturing, construction, and oil and gas, this socket is perfect for applications where quick and easy connections are necessary, such as in hydraulic systems, pneumatic systems, and high-pressure applications.
Top product features:
- Male hose barb design for easy connection to hoses
- Brass construction for durability and resistance to corrosion
- Quick connect socket design for fast and secure connections
Top product applications:
- Hydraulic System Connectors
- Pneumatic System Connectors
- Medical Device Fittings
The PARKER - 23KATP10MPN is a hose barb socket with ball locking and an internal poppet valve. Body material: brass
- external finish: nickel-plated. It is rated for use with hoses having a 3/8 in inner diameter and features a 3/8 in barb size and hose fitting size. Sealing is achieved using the specified Nitrile seal material. The socket is rated for pneumatic and fluid applications up to 300 psi maximum working pressure at 70°F and rated for operation within -4°F to 212°F.
Key Features:
- - Material: Brass body
- external finish: nickel-plated.
- - Connection Type: Hose barb (male fitting gender for hose attachment).
- - Compatible Hose Size: Designed for 3/8 in inner diameter hose.
- - Valve: Poppet valve included for controlling fluid or air flow.
- - Seal Material: Nitrile for sealing functionality.
- - Operating Temperature Range: -4°F to 212°F.
- - Rated Pressure: Up to 300 psi maximum working pressure at 70°F.
- - Dimensions: Overall length of 2.75 in and maximum outside diameter of 1 in.
- - Interchange: Compatible with Industrial Interchange standard fittings (as applicable to the specified hose barb and ball-locking socket configuration).
- - Standards: Listed as meeting A-A-59439
- ISO 6150-B
- MIL-C-4109F specifications.
- - Includes locking balls and valve spring components.
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 2.62
- Package Height: 1.75
- Package Weight: 2.21
Product info last updated on March 11, 2026 9:26pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
