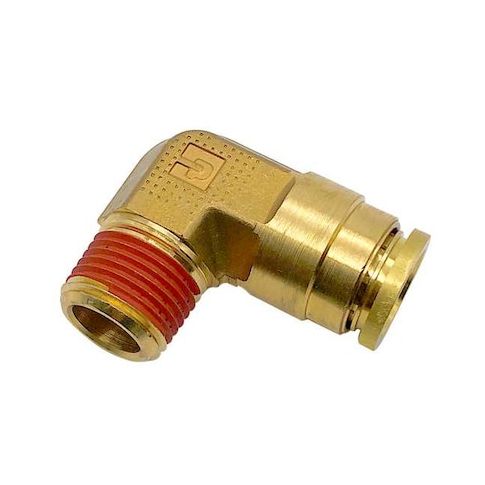

Brass DOT Push-to-Connect Fitting, Brass, Silver MPN:VS169PTC-10-6
Brass DOT Push-to-Connect Fitting, Brass, Silver
This Brass DOT Push-to-Connect Fitting from Parker is a reliable and efficient solution for air applications. Its push-fit elbow design allows for easy and secure connections, eliminating the need for threading or soldering. With a maximum operating pressure of 250 psi and temperature of 200°F, this fitting is suitable for a variety of applications, including HVAC, medical equipment, and industrial processes. Its gold-colored brass construction ensures durability and corrosion resistance, while the pre-applied thread sealant provides an added layer of leak protection. Ideal for use in high-pressure air systems, this fitting is a valuable addition to any toolkit.
Top product features:
- Pre-applied thread sealant ensures a secure connection without the need for additional sealant.
- Push-to-Connect design allows for quick and easy installation without the need for tools or specialized skills.
- Maximum operating pressure of 250 psi enables the fitting to handle high-pressure applications.
Top product applications:
- Air applications
- Process cooling applications
- Hydraulic applications
Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/8 in, Fitting Side A Tube Outer Diameter 5/8 in, Fitting Material Brass, Fitting Thread Size Not Applicable, Material Grade C36000, Color Gold, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 7/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.20
- Package Height: 2.00
- Package Weight: 1.60
Product info last updated on January 31, 2026 10:35pm UTC
Category: Pipes, Valves and Fittings
