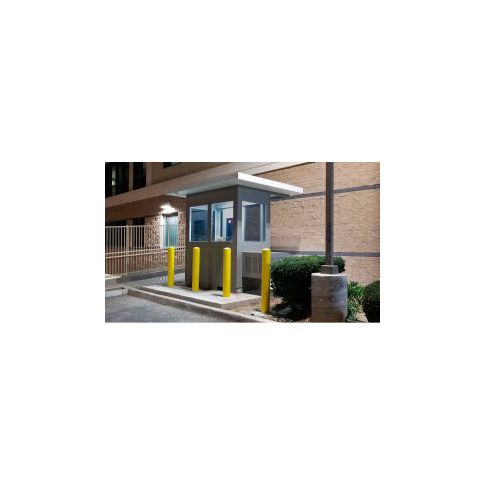

Panel Built 6' x 6' x 9' UL Level 3 Ballistic Rated Guard Booth Pre-Assembled Cirrus Gray STBGB66UL3-Cirrus Gray1637

This item is NOT returnable.

Our factory assembled welded steel booth shall be provided on a painted steel base ready to use. Available in five sizes. Each unit comes standard with 1/8" aluminum tread plate flooring ul level 3 ballistic rated half-glass steel door ul level 3 ballistic rated picture windows standard electrical package and 1/12 pitched panelized roof with 4" gutters and downspouts. Panel built guard booths are built to last having a durable 16 gauge smooth steel interior and a ul level 3 ballistic rated exterior with an r 19 insulated core. Complete structure includes welded steel base (4) 8' tall steel walls 3" thick aluminum laminated insulated roof ul level 3 ballistic rated fixed windows a load center (1) duplex outlet (1) light fixture and switch (1) ul level 3 ballistic rated half glass door with lever set hinges threshold and sweep thru wall hvac including a ballistic shroud and (1) x 18" deep stainless steel counter. No assembly required. Each building shall be equipped with a fork-liftable base frame for off-loading and placement by a forklift. The building shall be anchored using (4) anchors 1/2" x 4" minimum length hilti or equal expansion anchors provided by panel built installed on-site by others. We recommend a concrete floor slab thickness construction is 6 inches minimum. It must meet compressive strength requirements (usually 3000 pounds per square inch). Specific site locations should be taken into consideration with final design. The door(s) shall be 36"w x 84"h x 1 3/4" thick. The door shall be fabricated to include ul 752 / level 3 rated glass-clad polycarbonates in the upper half. The roof shall be 3" thick composite sandwich panels. Both sides shall be stucco-embossed aluminum pre-painted white. The core shall be of 1 lb. Density polystyrene foam. The entire panel shall be laminated together using a solvent-free two-part polyurethane adhesive and pressure. The panels shall have formed edge connectors that are capable of being friction locked w
