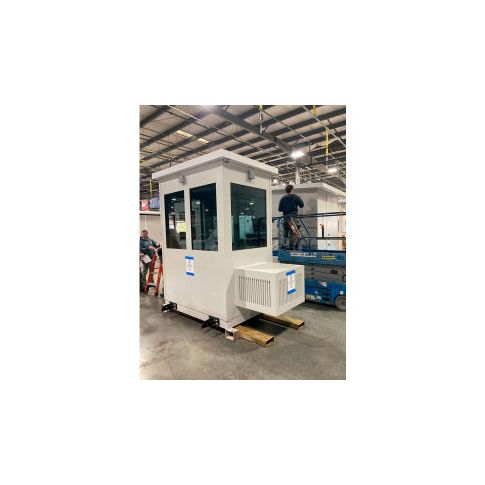

Panel Built 5' x 8' x 9' Guard Booth Pre-Assembled Cirrus Gray STBGB68-Cirrus Gray1637

This item is NOT returnable.

Our factory assembled welded steel booth shall be provided on a painted steel base ready to use. Available in five sizes. Each unit comes standard with 1/8" aluminum tread plate flooring half-glass steel door windows standard electrical package and 1/12 pitched panelized roof with 4" gutters and downspouts. Panel built guard booths are built to last having a durable 16 gauge smooth steel interior and exterior with an r 19 insulated core. Complete structure includes welded steel base (4) 8' tall steel walls 3" thick aluminum laminated insulated roof fixed and sliding windows a load center (1) duplex outlet (1) light fixture and switch (1) half glass door with lever set hinges threshold and sweep thru wall hvac and (1) x 18" deep stainless steel counter. No assembly required. Each building shall be equipped with a fork-liftable base frame for off-loading and placement by a forklift. The building shall be anchored using (4) anchors 1/2" x 4" minimum length hilti or equal expansion anchors provided by panel built installed on-site by others. We recommend a concrete floor slab thickness construction is 6 inches minimum. It must meet compressive strength requirements (usually 3000 pounds per square inch). Specific site locations should be taken into consideration with final design. The door(s) shall be 36"w x 84"h x 1 3/4" thick. The door shall be constructed of painted 20-gauge hot dipped galvanized steel mill treated for proper paint adherence. The door shall have a top and bottom channel of 16-gauge steel projection welded to door skins on no less than 2" centers. The roof shall be 3" thick composite sandwich panels. Both sides shall be stucco-embossed aluminum pre-painted white. The core shall be of 1 lb. Density polystyrene foam. The entire panel shall be laminated together using a solvent-free two-part polyurethane adhesive and pressure. The panels shall have formed edge connectors that are capable of being friction locked without mechanical fasteners
