Ferrule, 20 AWG, PP, 7/16in., PK500 MPN:FTD75-8-D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2600748

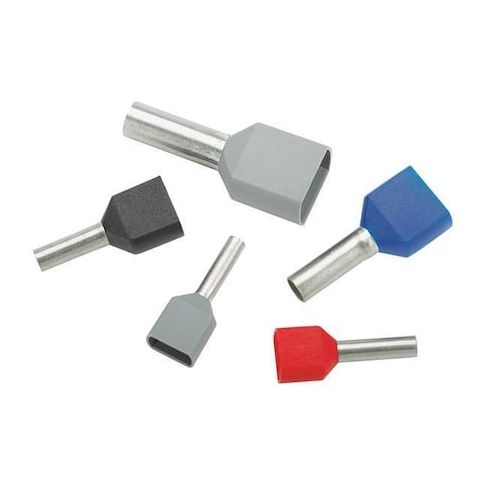

Ferrule, 20 AWG, PP, 7/16in., PK500
Panduit's Ferrule is a high-quality wire termination solution designed for use in a variety of applications, including electrical and industrial settings. With a maximum operating temperature of 221°F and a wide wire size range, this ferrule provides reliable connections in demanding environments. The copper barrel and tin-plated finish ensure excellent conductivity and corrosion resistance. Its compact design and polypropylene insulation make it ideal for use in tight spaces. Suitable for applications such as control panels, switchgear, and electrical enclosures, this ferrule offers a reliable and efficient way to terminate wires and ensure safe and efficient electrical connections.
Top product features:
- Crimp termination style provides secure connections
- Tin contact finish ensures reliable electrical conductivity
- Polypropylene insulation material provides high-temperature resistance
Top product applications:
- Wire termination for electrical systems
- Cable assembly and wire harness manufacturing
- Electrical panel and enclosure construction
Wire Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.07 in, Ferrule Material Copper, Insertion Length 7/16 in, Insulation Color White, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 20 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.09 in, Barrel Finish Tin Plated, Barrel Length 0.28 in, Barrel Material Copper
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.50
- Package Width: 3.70
- Package Height: 0.40
- Package Weight: 0.12
Product info last updated on January 13, 2026 11:58am UTC
Category: Electrical Connectors
