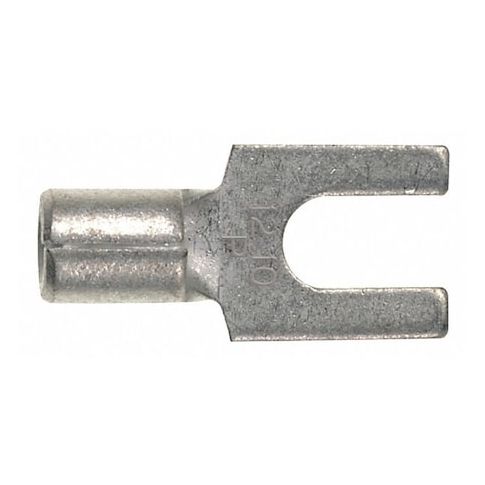

Fork Terminal, #10 Stud Size, 14 AWG, 2, 000 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK MPN:P14-10F-C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0287841
Fork Terminal, #10 Stud Size, 14 AWG, 2, 000 V, Bare Insulated, Bare, Crimp Termination Only, 100 PK
The Panduit Fork Terminal is a reliable and efficient solution for secure wire connections. Suitable for use in a variety of applications, including electrical and industrial settings, this terminal features a #10 stud size and 14 AWG wire capacity, supporting up to 2,000V. Its crimp termination style ensures a strong and durable connection. The terminal's copper contact material and tin finish provide excellent conductivity and corrosion resistance. With a maximum operating temperature of 302°F, it can withstand demanding environments. Ideal for use in industrial control panels, electrical enclosures, and other applications where secure wire connections are critical.
Top product features:
- Crimps wire for secure termination
- Made with copper for good conductivity
- Operates at temperatures up to 302 degrees Fahrenheit
Top product applications:
- Circuit Breaker Panels
- Electrical Distribution Boxes
- High Voltage Applications
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Maximum Wire Size 14 AWG, Stud Size #10, Termination Style Crimp, Tongue Length 0.44 in, Seam Style Brazed, Standards CSA Certified, UL 587-H, UL Listed, Barrel Length 0.28 in, Compatible Grainger Part Number 376T32, 376T39, 38YU60, 38YU63
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.00
- Package Width: 1.80
- Package Height: 1.80
- Package Weight: 0.25
Product info last updated on January 15, 2026 1:04am UTC
Category: Electrical Connectors
