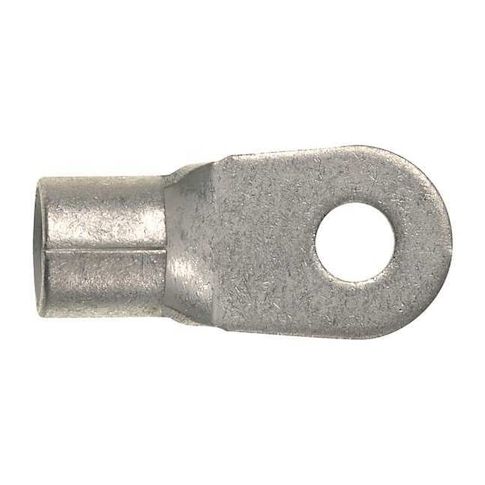

Ring Terminal, 5/16 in Stud Size, 4 AWG, 2, 000 V, Bare Insulated, Bare, Crimp Termination Only MPN:P4-56R-T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0287616
Ring Terminal, 5/16 in Stud Size, 4 AWG, 2, 000 V, Bare Insulated, Bare, Crimp Termination Only
This Panduit Ring Terminal is a reliable and efficient solution for connecting wires in a variety of applications. With a 5/16 in stud size and 4 AWG rating, it can handle high-voltage connections up to 2,000 V. The bare insulated design provides a secure crimp termination and can withstand temperatures up to 302°F. Suitable for use in electrical panels, switchgear, and other high-voltage equipment, this ring terminal offers a durable and long-lasting connection. Its compact size and easy crimp termination make it ideal for use in a range of industries, including industrial automation, power generation, and electrical distribution.
Top product features:
- Crimp termination allows for secure and reliable connections
- Termination style is crimp, which provides a strong and durable bond between the wire and the terminal
- Contact material is copper, which offers excellent conductivity and corrosion resistance
Top product applications:
- Wire harness assembly
- Electrical panel construction
- Automotive wiring system installation
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Termination Style Crimp, Tongue Width 0.68 in, Contact Finish Tin, Contact Material Copper, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Inside Diameter 0.29 in, Barrel Outside Diameter 0.39 in, Barrel Size Standard, Barrel Style Brazed Serrated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.30
- Package Width: 3.40
- Package Height: 6.90
- Package Weight: 3.14
Product info last updated on January 15, 2026 1:03am UTC
Category: Electrical Connectors
