Ring Terminal, 1/2 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only MPN:PN10-12R-Q
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0287421

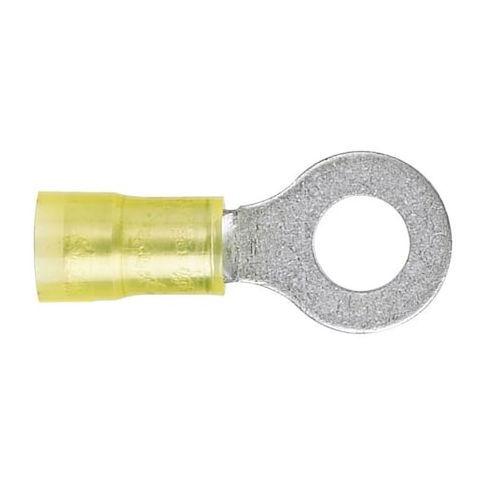

Ring Terminal, 1/2 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only
The Panduit Ring Terminal is a reliable and efficient solution for electrical connections. With a 10 AWG wire capacity and 600V rating, it's suitable for various applications, including industrial control panels and equipment. The nylon insulation provides excellent durability and resistance to heat, with a maximum operating temperature of 221°F. The crimp termination style ensures a secure connection, while the copper contact and tin finish ensure optimal conductivity. This ring terminal is ideal for use in commercial and industrial settings, offering a cost-effective and efficient way to manage electrical connections and improve overall system reliability.
Top product features:
- Nylon insulated for electrical protection and durability
- Crimp termination style for secure wire connection
- Tin contact finish for corrosion resistance and reliable conductivity
Top product applications:
- Wire harnessing for industrial equipment
- Electrical connections in automotive applications
- Heavy-duty electrical installations in commercial construction
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.72 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, V-2, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Length 0.74 in, Barrel Style Insulation Grip, Hole Diameter 0.52 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 4.30
- Package Weight: 0.22
Product info last updated on January 15, 2026 1:03am UTC
Category: Electrical Connectors
