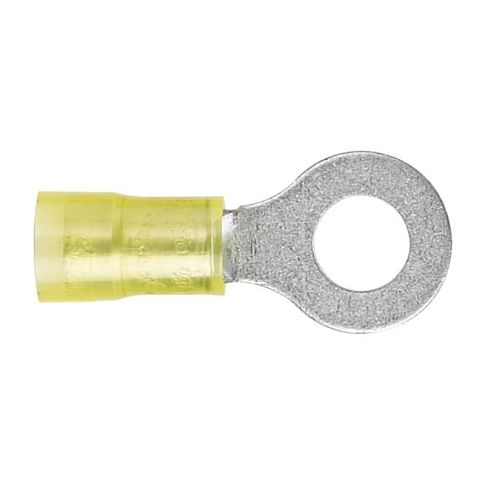

Ring Terminal, 1/4 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only MPN:PN10-14R-D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0287406
Ring Terminal, 1/4 in Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only
Panduit's 1/4 in stud size ring terminal is designed for secure crimp termination of 10 AWG wires in high-voltage applications up to 600V. The nylon insulation provides excellent durability and resistance to heat, with a maximum operating temperature of 221°F. This terminal is ideal for use in industrial control panels, electrical distribution systems, and other applications where reliable connections are critical. Its compact design and easy crimp termination make it a convenient choice for electricians and engineers, while its compliance with CSA C22.2 No. 65 and UL 486A standards ensures high-quality performance in a wide range of settings.
Top product features:
- Crimp termination allows for secure and reliable connections
- Nylon insulation provides electrical isolation and protection
- Tin-plated copper contacts ensure good electrical conductivity
Top product applications:
- Electrical Panel Board Connections
- Wire Harness Construction
- Automotive Electrical Systems
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.52 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Style Insulation Grip, Compatible Grainger Part Number 376T26, 376U11, 376V66, 38YU61
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.10
- Package Width: 4.40
- Package Height: 3.40
- Package Weight: 3.10
Product info last updated on January 15, 2026 1:03am UTC
Category: Electrical Connectors
