Ring Terminal, #8 Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only, 500 PK MPN:PN10-8R-D
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0287345

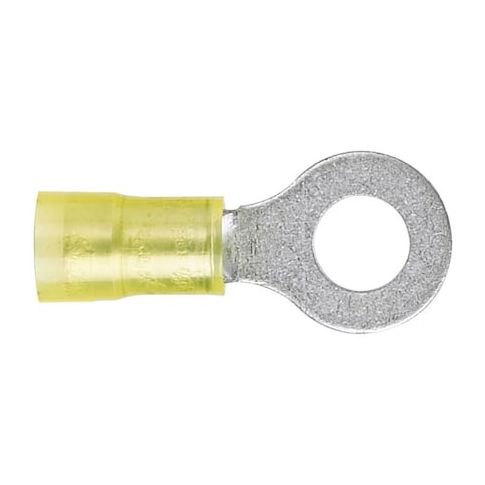

Ring Terminal, #8 Stud Size, 10 AWG, 600 V, Nylon Insulated, Yellow, Crimp Termination Only, 500 PK
This #8 stud size ring terminal is designed for secure crimp termination of 10 AWG wires, suitable for applications up to 600V. The nylon insulation provides partial coverage and a maximum operating temperature of 221°F. The terminal's crimp termination style ensures a reliable connection, while the copper contact and tin finish provide excellent conductivity. This product is ideal for use in electrical systems, industrial equipment, and commercial settings where a high-quality, durable connection is required. Its compact size and versatility make it a valuable component for a wide range of applications.
Top product features:
- Nylon insulation provides electrical insulation and resistance to heat and chemicals
- Crimp termination allows for secure and reliable connection to wires
- Tin contact finish provides a durable and corrosion-resistant connection point
Top product applications:
- Wire harness assembly
- Automotive electrical connections
- Heavy-duty power distribution systems
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.37 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Style Insulation Grip, Compatible Grainger Part Number 376T26, 376U11, 376V66, 38YU61
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 7.30
- Package Width: 3.50
- Package Height: 3.50
- Package Weight: 2.59
Product info last updated on January 15, 2026 1:02am UTC
Category: Electrical Connectors
