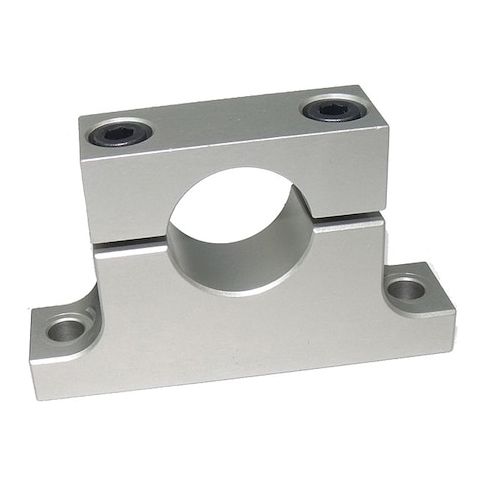

Linear Shaft Support, 36 mm H MPN:LPB-20M
Linear Shaft Support, 36 mm H
The ONDRIVE Linear Shaft Support is a versatile and reliable component designed for use with linear shafting in a variety of applications. Its anodized aluminum construction and compact 36mm height make it ideal for precision machinery and equipment. With a mounting surface to shaft center of 22mm and a shaft loading direction of top load, this support provides secure and stable positioning. Suitable for use in industries such as robotics, automation, and medical devices, the LPBM series offers a reliable and efficient solution for linear motion systems. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Anodized finish provides corrosion resistance
- Mounting holes allow for secure fastening to a surface
- Shaft loading direction from the top enables easy installation and reduced risk of damage
Top product applications:
- Positioning of linear shafting in applications that require precise alignment and stability
- Support of heavy loads in industrial machinery and equipment
- Alignment and stabilization of precision instruments and equipment in laboratory settings
Linear Shaft Support, System of Measurement Metric, For Use With Linear Shafting, Nominal Inside Diameter 20 mm, Mounting Hole Center to Center 54 mm, Overall Height 36 mm, Mounting Surface to Shaft Center 22 mm, Finish Anodized, Material Aluminum, Series LPBM, Bolt Size 5 mm, Base Height 8 mm, Base Length 65 mm, Base Width 13 mm, Mounting Hole Size 5.5 mm, Number of Mounting Holes 2, Shaft Loading Direction Top Load, Standards RoHS Compliant, Top Length 42 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 6.00
- Package Weight: 0.14
