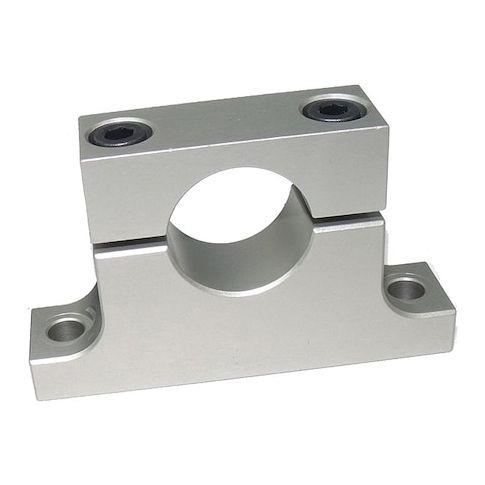

Linear Shaft Support, 0.87 in H MPN:LPB-04
Linear Shaft Support, 0.87 in H
Elevate your linear motion systems with the ONDRIVE Linear Shaft Support. Designed for use with linear shafting, this compact support provides a secure and stable platform for your applications. Its anodized aluminum construction and #6 bolt mounting ensure a durable and long-lasting solution. With a top load shaft loading direction, this support is ideal for applications requiring top-down loading. Suitable for use in a variety of industries, including robotics, automation, and medical equipment, the Linear Shaft Support offers a reliable and efficient way to manage linear motion. Its compact size and lightweight design make it easy to integrate into your system.
Top product features:
- For Use With Linear Shafting
- Mounting Hole Center to Center 1.25 in
- Shaft Loading Direction Top Load
Top product applications:
- Conveyor System Components
- Automotive Assembly Line Equipment
- Precision Machinery Mounting
Linear Shaft Support, System of Measurement Inch, For Use With Linear Shafting, Nominal Inside Diameter 1/4 in, Mounting Hole Center to Center 1.25 in, Overall Height 0.87 in, Mounting Surface to Shaft Center 0.562 in, Finish Anodized, Material Aluminum, Series LPB, Bolt Size #6, Base Height 0.19 in, Base Length 1.63 in, Base Width 0.38 in, Mounting Hole Size 0.16 in, Number of Mounting Holes 2, Shaft Loading Direction Top Load, Standards RoHS Compliant, Top Length 0.91 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 6.00
- Package Weight: 0.03
Product info last updated on February 3, 2026 7:14am UTC
Category: Bearings, V-belts and Power Transmission Equipment
