Linear Shaft Support, 2-Mounting Holes MPN:LPB-03
Linear Shaft Support, 2-Mounting Holes

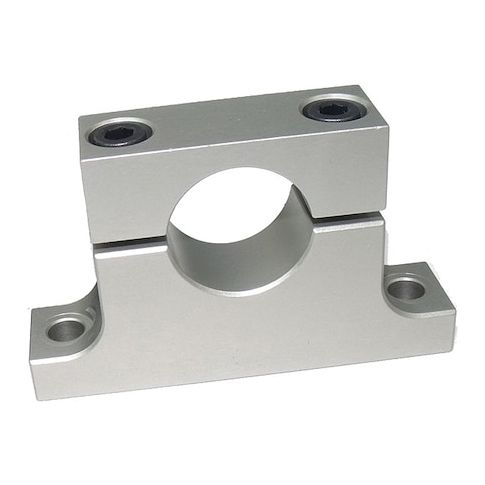

The ONDRIVE LPB Linear Shaft Support is a versatile and reliable solution for applications requiring precise linear motion. Designed for use with linear shafting, this aluminum support provides a secure and stable mounting system, with two #4 bolt mounting holes spaced 0.94 inches center to center. Its compact design, measuring 0.59 inches in height, makes it ideal for applications where space is limited. Suitable for top loading, this support is perfect for use in robotics, automation, and precision machinery, offering a reliable and efficient solution for linear motion applications.
Top product features:
- Anodized finish provides corrosion resistance
- Material aluminum provides lightweight construction
- Mounting surface to shaft center distance of 0.343 in allows for precise shaft alignment
Top product applications:
- Automotive Steering Systems
- Robotics and Automation
- Machine Tooling and CNC Equipment
Linear Shaft Support, System of Measurement Inch, For Use With Linear Shafting, Nominal Inside Diameter 3/16 in, Mounting Hole Center to Center 0.94 in, Overall Height 0.59 in, Mounting Surface to Shaft Center 0.343 in, Finish Anodized, Material Aluminum, Series LPB, Bolt Size #4, Base Height 0.16 in, Base Length 1.19 in, Base Width 0.31 in, Mounting Hole Size 0.14 in, Number of Mounting Holes 2, Shaft Loading Direction Top Load, Standards RoHS Compliant, Top Length 0.69 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 6.00
- Package Weight: 0.01
Product info last updated on March 1, 2026 4:33am UTC
Category: Bearings, V-belts and Power Transmission Equipment
