Linear Shaft Support, 1.5 in H MPN:SBL-08
Linear Shaft Support, 1.5 in H

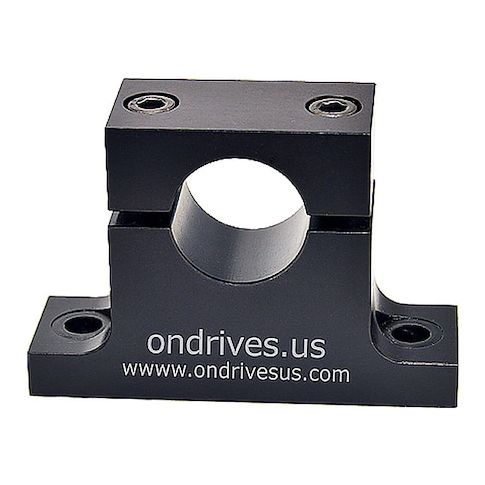

The ONDRIVE SBL Linear Shaft Support is a reliable and versatile component for linear motion systems. Its compact design and anodized aluminum construction make it ideal for use in a variety of applications, including robotics, medical devices, and industrial automation. With a mounting surface to shaft center distance of 1 inch and a top load shaft loading direction, this support provides stable and secure positioning of linear shafting. Its compact size and lightweight design make it easy to integrate into tight spaces, while its RoHS compliance ensures it meets the highest standards of environmental sustainability.
Top product features:
- Anodized finish for corrosion resistance
- Mounting holes for secure attachment to linear shafting
- Shaft loading direction allows for top load applications
Top product applications:
- Linear Shaft Support can be used as a bearing component in a conveyor system to support and guide linear shafting.
- Linear Shaft Support can be used as a bearing component in a robotic arm to support and guide linear shafting.
- Linear Shaft Support can be used as a bearing component in a precision machine tool to support and guide linear shafting.
Linear Shaft Support, System of Measurement Inch, For Use With Linear Shafting, Nominal Inside Diameter 1/2 in, Mounting Hole Center to Center 1.5 in, Overall Height 1.5 in, Mounting Surface to Shaft Center 1 in, Finish Anodized, Material Aluminum, Series SBL, Bolt Size #8, Base Height 0.25 in, Base Length 2 in, Base Width 0.63 in, Mounting Hole Size 0.19 in, Number of Mounting Holes 2, Shaft Loading Direction Top Load, Standards RoHS Compliant, Top Length 1.13 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 4
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 4.00
- Package Height: 0.20
- Package Weight: 0.10
