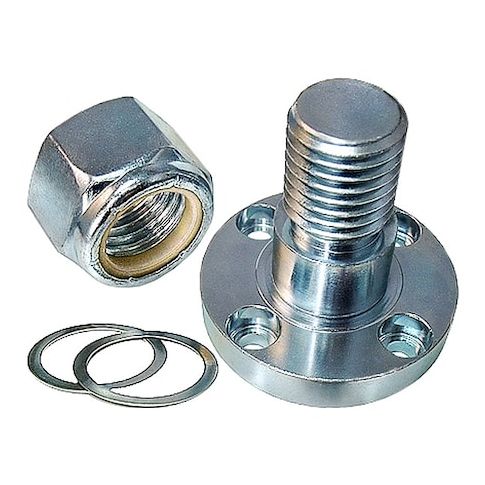

Flanged Bulkhead Mount, 1.05 in L, Steel MPN:FMC-1000
Flanged Bulkhead Mount, 1.05 in L, Steel
This Flanged Bulkhead Mount is a versatile and reliable component for various industrial applications. Its zinc-plated finish and 1215 steel material ensure durability and resistance to corrosion. With a journal diameter of 1 inch and a journal length of 0.625 inches, it provides a secure and stable connection. Suitable for use in demanding environments, this bulkhead mount is ideal for applications in oil and gas, chemical processing, and heavy machinery. Its compact design and easy installation make it a convenient solution for engineers and technicians, offering a reliable and long-lasting connection in a wide range of industrial settings.
Top product features:
- Mounts through a bulkhead with a flanged design for secure installation
- Provides a bolt circle diameter of 1.75 inches for attachment options
- Features a zinc-plated finish for corrosion resistance
Top product applications:
- Pumps and motors can be mounted to a wall or panel using the flanged bulkhead mount.
- The mount can be used to secure a control panel to a wall or other surface.
- A variety of equipment, such as valves and sensors, can be attached to a wall or panel using the flanged bulkhead mount.
Flanged Bulkhead Mount, Bolt Circle Diameter 1.75 in, Finish Zinc Plated, Flange Thickness 0.406 in, Journal Diameter 1 in, Journal Length 0.625 in, Material Steel, Material Grade 1215, Mount Style Flanged Bulkhead, Mounting Screw Size 0.25 in, Overall Diameter 2.25 in, Overall Length 1.05 in, Spacer Diameter 1.25 in, Spacer Thickness 0.016 in, Stud Thread Size 7/8 In.-9, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 6.00
- Package Weight: 0.72
Product info last updated on February 8, 2026 10:51am UTC
Category: Bearings, V-belts and Power Transmission Equipment
