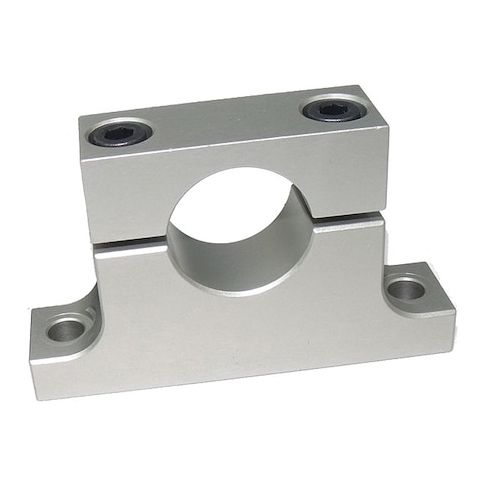

Linear Shaft Support, 25 mm H MPN:LPB-10M
Linear Shaft Support, 25 mm H
The ONDRIVE LPBM Linear Shaft Support is a versatile and reliable solution for applications requiring precision and stability. Designed for use with linear shafting, this support features a compact anodized aluminum design with a 10mm nominal inside diameter and 38mm mounting hole center to center. With a top load shaft loading direction and two 4.5mm mounting holes, it provides secure and easy installation. Suitable for a wide range of industries, including robotics, automation, and medical devices, this support ensures smooth operation and extended lifespan of linear shafting systems. Its compact size and low weight make it ideal for space-constrained applications.
Top product features:
- Anodized finish for corrosion resistance
- Mounting surface to shaft center distance of 14 mm for precise alignment
- Shaft loading direction is top load for easy and safe installation
Top product applications:
- Linear Shaft Support can be used in CNC machines for supporting linear shafting and providing a stable mounting surface.
- Linear Shaft Support can be used in robotic systems for supporting linear shafting and providing a stable mounting surface for robotic arms.
- Linear Shaft Support can be used in precision machinery for supporting linear shafting and providing a stable mounting surface for precision components.
Linear Shaft Support, System of Measurement Metric, For Use With Linear Shafting, Nominal Inside Diameter 10 mm, Mounting Hole Center to Center 38 mm, Overall Height 25 mm, Mounting Surface to Shaft Center 14 mm, Finish Anodized, Material Aluminum, Series LPBM, Bolt Size 4 mm, Base Height 5 mm, Base Length 46 mm, Base Width 12 mm, Mounting Hole Size 4.5 mm, Number of Mounting Holes 2, Shaft Loading Direction Top Load, Standards RoHS Compliant, Top Length 28 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 6.00
- Package Weight: 0.05
Product info last updated on February 25, 2026 4:27pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
