Light Curtain, NPN/PNP, 124 Beams MPN:F3SG-4SRA0760-25-F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G701775266
Light Curtain, NPN/PNP, 124 Beams

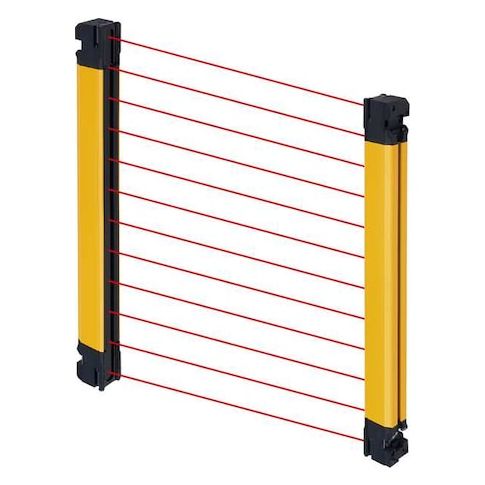

The Omron Light Curtain is a reliable and accurate solution for detecting objects and ensuring safety in industrial applications. With its 124 beams and 65.6 ft maximum sensing distance, it provides a wide range of detection capabilities. Its NPN/PNP output and 300 mA safety output ratings make it suitable for use in various industries, including manufacturing and logistics. The light curtain's compact design and IP67 rating also make it ideal for use in harsh environments. Its fast response time of 8-40 ms makes it suitable for use in high-speed applications, such as conveyor belt systems and automated production lines.
Top product features:
- Max. Sensing Distance 65.6 ft
- Effective Aperture Angle 2.5 Degrees @ 3 m
- Response Time 8 to 40 msec
Top product applications:
- Machine Vision Inspection
- Automated assembly lines often utilize light curtains for detecting the presence or absence of objects. Omron's 124-beam light curtain can be used to inspect products for defects or missing parts.
- Material Handling Systems
- Light Curtain, Max. Sensing Distance 65.6 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Housing Material Aluminum, NEMA Rating Not Rated, Protected Height 760 mm, IP Rating IP67, Beam Spacing 20 mm, Number of Beams 124, Effective Aperture Angle 2.5 Degrees @ 3 m, Light Source 870 nm IR LED, Response Time 8 to 40 msec
- 10 to 50 msec, Overall Height 29.92 in, Width 1.26 in, Depth 1.5 in, Cable Length Not Applicable, Cable Connection Receiver 8 Pin, M12
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.11
- Package Width: 4.00
- Package Height: 33.11
- Package Weight: 5.56
Product info last updated on March 1, 2026 12:48am UTC
Category: Industrial Electrical Controls and Automation
