Safety Light Curtain, PNP, 31 Beams MPN:F3SG4RE0320P14
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G601701877
Safety Light Curtain, PNP, 31 Beams

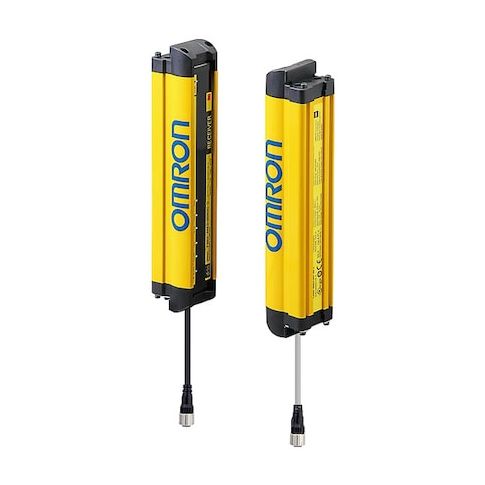

The Omron Safety Light Curtain, PNP, 31 Beams is a reliable and efficient safety solution for various industrial applications. Its 32-foot maximum sensing distance and 300mA safety output ratings ensure a secure and responsive protection system. The yellow-colored light curtain is made of durable aluminum housing with IP67 and IP65 ratings, suitable for harsh environments. With a beam spacing of 10mm and 31 beams, it provides a wide coverage area. This light curtain is ideal for applications such as machine guarding, conveyor systems, and robotic cells, offering improved safety and productivity.
Top product features:
- Safety Light Curtain with a maximum sensing distance of 32 ft
- Safety Light Curtain with a response time of 25 to 75 msec (Off to On) and 5 to 15 msec (On to Off)
- Safety Light Curtain with a protected height of 320 mm and an IP rating of IP65 and IP67
Top product applications:
- Machine Guarding
- Industrial Automation
- Robotics
- Safety Light Curtain, Max. Sensing Distance 32 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Color Yellow, Housing Material Aluminum, NEMA Rating IP67, Protected Height 320 mm, IP Rating IP65, IP67, Beam Spacing 10 mm, Number of Beams 31, Effective Aperture Angle +/-2.5 Degrees @ 3 m, Light Source 870 nm IR LED, Response Time 25 to 75 msec (Off to On)
- 5 to 15 msec (On to Off), Overall Height 13.78 in, Width 40 mm, Depth 35 mm, Cable Length Not Applicable
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 5.70
- Package Height: 3.30
- Package Weight: 4.71
- Restricted States: CA
Product info last updated on February 11, 2026 8:21am UTC
Category: Industrial Electrical Controls and Automation
