Safety Light Curtain, PNP, 20 Beams MPN:F3SG4RE0430P30
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G501701878
Safety Light Curtain, PNP, 20 Beams

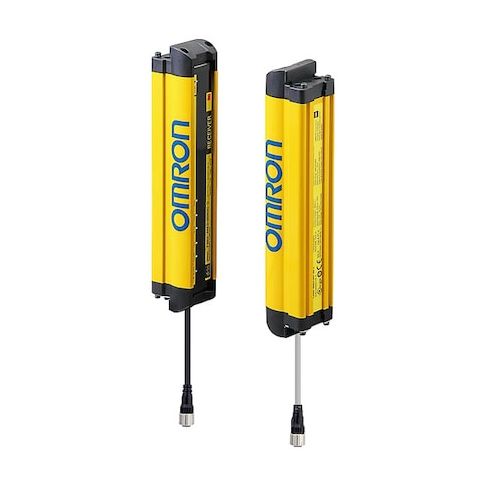

The Omron Safety Light Curtain is a reliable and versatile safety solution designed to detect the presence of personnel or objects in a given area. With a maximum sensing distance of 65 ft and a fast response time of 25-75 msec, it provides effective protection in a variety of applications, including manufacturing, warehousing, and material handling. Its compact design and durable aluminum housing make it easy to install and maintain. The Safety Light Curtain is ideal for use in hazardous environments where personnel safety is a top priority, such as in the presence of moving machinery or heavy equipment.
Top product features:
- Safety Light Curtain has a max sensing distance of 65 ft
- Safety Light Curtain has a response time of 25 to 75 msec (Off to On) and 5 to 15 msec (On to Off)
- Safety Light Curtain has an effective aperture angle of +/-2.5 Degrees @ 3 m
Top product applications:
- Machine Guarding
- Automotive Manufacturing Line
- Material Handling Systems
- Safety Light Curtain, Max. Sensing Distance 65 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Color Yellow, Housing Material Aluminum, NEMA Rating IP67, Protected Height 430 mm, IP Rating IP65, IP67, Beam Spacing 10 mm, Number of Beams 20, Effective Aperture Angle +/-2.5 Degrees @ 3 m, Light Source 870 nm IR LED, Response Time 25 to 75 msec (Off to On)
- 5 to 15 msec (On to Off), Overall Height 18.11 in, Width 40 mm, Depth 35 mm, Cable Length Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 90 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.50
- Package Width: 5.80
- Package Height: 3.10
- Package Weight: 5.20
- Restricted States: CA
Product info last updated on February 8, 2026 2:52pm UTC
Category: Industrial Electrical Controls and Automation
