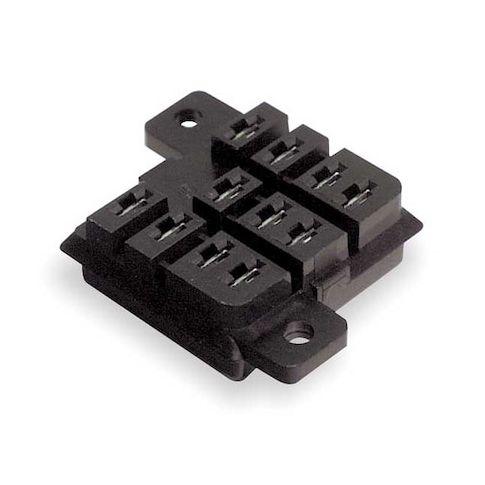

Relay Socket, Standard, Square, 11 Pin, PCB MPN:PTFPCB
Relay Socket, Standard, Square, 11 Pin, PCB
The Omron Relay Socket is a reliable and versatile solution for connecting and mounting relays on printed circuit boards. With its 11-pin, flat pin design and 3PDT contact form, it provides a secure and efficient electrical connection for a wide range of applications. Suitable for use with Omron's MJN series relays, this socket is ideal for industrial control systems, automation equipment, and other high-reliability applications where a stable and consistent connection is critical. Its compact size and surface-mount design make it easy to integrate into complex systems, ensuring reliable performance and minimizing downtime.
Top product features:
- It has a 3PDT contact form, allowing for multiple relay configurations.
- It can handle a current rating of 10 A, suitable for a wide range of applications.
- It has 11 flat pins with a width of 0.036 in, providing a secure electrical connection to a printed circuit board.
Top product applications:
- Industrial Control Panels
- Automotive Electronics
- Medical Device Manufacturing
Relay Socket, Base Style Square, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Printed Circuit Board, Flat Pin Width 0.036 in, Number of Pins 11, Number of Terminals 11, Pin Shape Flat, Socket Type Back Pin, Mounting Style Surface, Color Black, Compatible Relays MJN Series, Contact Rating (AC) 10 A @ 300V, Depth 2.02 in, Height 0.31 in, Status Indicator None, Width 1.5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 5
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 1.00
Product info last updated on March 29, 2026 8:46am UTC
Category: Industrial Electrical Controls and Automation
