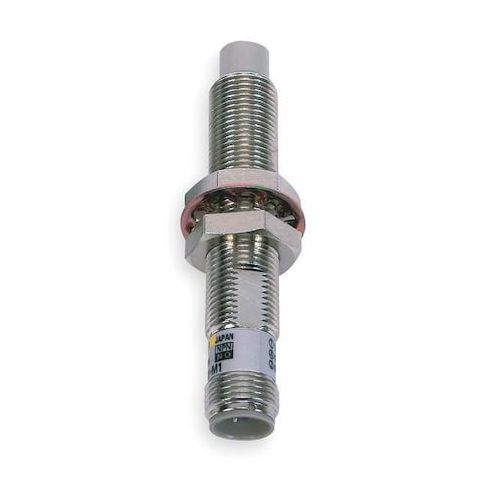

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 2 Wires, Shielded MPN:E2E2-X10Y1-M4
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 2 Wires, Shielded
This Omron inductive proximity sensor is a reliable and versatile solution for detecting objects in various industrial and commercial settings. With a maximum detecting distance of 10 mm and a wide operating frequency range, it can be used in applications such as material handling, automation, and quality control. The sensor's shielded design and nickel-plated brass construction ensure durability and resistance to electromagnetic interference. Its compact cylindrical shape and M12 connector make it easy to integrate into existing systems. Suitable for use in harsh environments, this sensor offers a cost-effective and efficient way to improve productivity and accuracy.
Top product features:
- Cylindrical shape allows for easy installation in tight spaces
- Detects objects within 10 mm of the sensor
- Operates within a wide temperature range of -40 to 185 degrees Fahrenheit
Top product applications:
- Machine Vision Inspection
- Industrial Automation
- Robotics and Mechatronics
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC, Shielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 3 Pin M12 Connector, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating IP67, Case Material Nickel Plated Brass, Length 55 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.10
- Package Width: 6.10
- Package Height: 0.90
- Package Weight: 0.25
Product info last updated on February 10, 2026 4:46am UTC
Category: Industrial Electrical Controls and Automation
