Relay, 8Pin, DPDT, 10A, 12VDC MPN:LY2F-DC12
Relay, 8Pin, DPDT, 10A, 12VDC

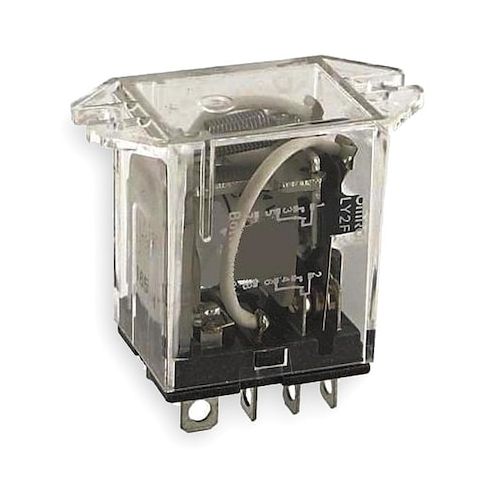

The Omron 8-pin DPDT relay is a reliable and versatile solution for controlling high-current devices in a variety of applications. With a 10A current rating and 12VDC coil voltage, this relay is suitable for use in industrial control systems, automotive electronics, and medical devices. Its compact flange mount design and plug-in terminal connections make it easy to integrate into existing systems. The relay's silver alloy contacts ensure high reliability and long lifespan, while its manual push-to-test feature allows for easy troubleshooting and maintenance. Ideal for applications requiring high current switching and reliable operation.
Top product features:
- Flange Mount design allows for easy installation and secure mounting.
- DPDT (Double Pole Double Throw) contact form enables the relay to control two separate circuits with a single coil.
- 10A current rating allows for high power switching and reliable circuit control.
Top product applications:
- Automotive control systems
- Industrial automation and control systems
- Medical equipment control and monitoring systems
Flange Mount Relay, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In Terminal, Number of Pins 8, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Mounting Style Top Flange, Push-To-Test Method Manual, Base Shape Square, Body Depth 1.39 in, Body Height 1.73 in, Body Width 0.88 in, Coil Resistance 160 ohm, Contact Material Silver Alloy
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 0.80
- Package Height: 1.70
- Package Weight: 0.08
Product info last updated on January 13, 2026 1:46pm UTC
Category: Industrial Electrical Controls and Automation
