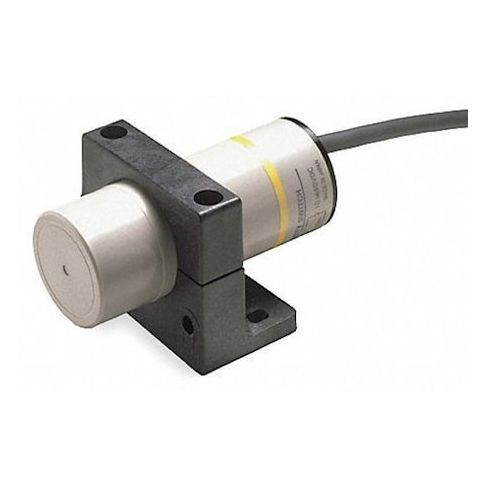

Capacitive, Cylindrical Proximity Sensor, 34 mm Dia., Plastic, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E2K-C25MY1
Capacitive, Cylindrical Proximity Sensor, 34 mm Dia., Plastic, 2 m, Bare Wire, 2 Wires, Unshielded
The Omron Capacitive Cylindrical Proximity Sensor is a reliable and versatile sensing solution for a wide range of applications. Ideal for detecting objects in harsh environments, this sensor features a durable plastic housing and operates within a broad temperature range of -13 to 158°F. With a maximum detecting distance of 25mm, it's perfect for use in conveyor systems, material handling, and automation. The 2-wire output and 90-250V AC power requirement make it easy to integrate into existing systems, offering a simple and cost-effective solution for proximity sensing applications.
Top product features:
- Capacitive sensing technology allows for detection of objects within a 25 mm distance
- Detects objects through a 34 mm diameter cylindrical housing
- Operates within a temperature range of -13 to 158 degrees Fahrenheit
Top product applications:
- Automotive assembly lines for detecting parts presence
- Industrial equipment monitoring for detecting object approach
- Material handling systems for detecting package presence
Capacitive Cylindrical Proximity Sensor, Capacitive, 34 mm, Proximity Sensor Power Requirement 90 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 25 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, IP Rating IP66, Case Material Plastic, Length 89 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.50
- Package Height: 2.70
- Package Weight: 0.45
Product info last updated on January 13, 2026 2:00pm UTC
Category: Industrial Electrical Controls and Automation
