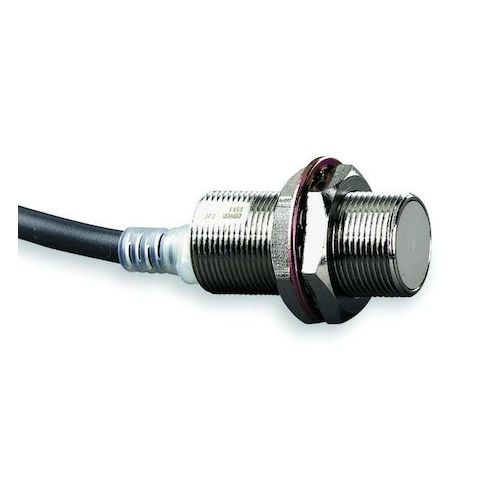

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded MPN:E2E-X7D1-N
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded
This Omron inductive proximity sensor is a reliable and versatile solution for detecting the presence of metal objects. Its cylindrical design and 18mm diameter make it ideal for use in tight spaces and on moving parts. With a maximum detecting distance of 7mm and a frequency of 500Hz, it can accurately detect the presence or absence of metal objects. Its shielded design and IP67 rating make it suitable for use in harsh environments, and its 2m cable provides flexibility in installation. Applications include industrial automation, material handling, and quality control. It's also easy to integrate into existing systems.
Top product features:
- Cylindrical shape for easy installation and reduced obstruction
- Shielded design for improved electromagnetic interference protection
- Operating frequency of 500 Hz for reliable detection in various environments
Top product applications:
- Machine Guarding
- Automated Conveyors
- Industrial Automation
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 500 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating IP67, IP67G, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 1.20
- Package Weight: 0.35
Product info last updated on January 13, 2026 1:54pm UTC
Category: Industrial Electrical Controls and Automation
