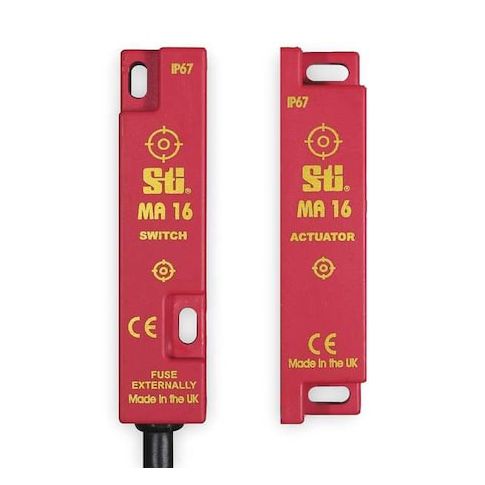

2NC Magnetically Actuated Safety Interlock Switch Nema 6 MPN:44507-1671
2NC Magnetically Actuated Safety Interlock Switch Nema 6
The Omron 2NC Magnetically Actuated Safety Interlock Switch is a reliable and efficient solution for ensuring safety in industrial applications. This NEMA 6 rated switch features a 2NC contact form and can be used to control AC circuits up to 2A at 230V. Its magnetic actuation allows for easy operation and reduces wear on the switch. The switch is also IP67 rated, making it suitable for harsh environments. Its compact size and pre-cabled termination make it easy to install. Ideal for use in control panels, machinery, and equipment, this switch provides a high level of safety and reliability.
Top product features:
- Magnetically actuated design allows for easy operation and reduced wear on the switch
- 2NC contact form ensures reliable and repeatable switching behavior
- Operating temperature range of 14°F to 131°F ensures the switch can be used in a variety of environments
Top product applications:
- Machine Guarding: Prevent accidental start-up of machinery by mounting the switch on a guard door or fence to detect when the door is opened or closed.
- Conveyor Systems: Use the switch to detect the presence or absence of a load on a conveyor belt, preventing the system from operating when a load is not present.
- Material Handling Equipment: Mount the switch on a lift gate or other movable part of a material handling system to prevent the system from operating when the gate is not in its home position.
Magnetically Actuated Safety Interlock Switch, Series MA, Switch Width 0.75 in, Switch Height 3.25 in, Switch Depth 0.67 in, Contact Form 2NC, AC Contact Rating 2 A @ 230 V, DC Contact Rating Not Applicable, Operating Temp. Range 14 Degrees to 131 Degrees F, Termination Type Pre-Cabled, Cable Length 19.69 ft, NEMA Rating 6, IP Rating IP67, Actuator Width 0.75 in, Actuator Height 3.25 in, Actuator Depth 0.75 in, On Sensing Distance 0.28 in, Off Sensing Distance 0.98 in, Body Material ABS
Additional Information
- Country of Origin: GB
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 75 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 5.00
- Package Height: 4.00
- Package Weight: 1.30
