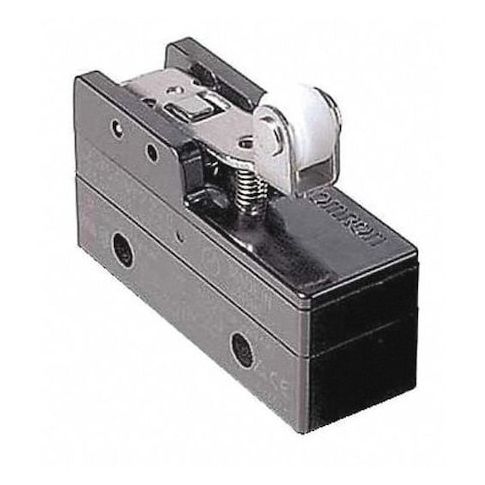

Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 15 A at 480 V AC Contact Rating MPN:Z-15GW22
Snap Action Switch, Hinge Roller, Lever, Short Actuator, SPDT, 15 A at 480 V AC Contact Rating
The Omron Snap Action Switch is a reliable and versatile component designed for a wide range of applications, including industrial automation and control systems. Its SPDT configuration and 15A contact rating make it suitable for high-current applications up to 480V AC, while its DC contact rating of 15A at 14V provides flexibility for low-voltage systems. The switch's compact size and short actuator length make it ideal for use in tight spaces, and its lever actuator provides easy operation. Suitable for applications in various industries, including manufacturing, robotics, and energy management.
Top product features:
- Snap Action Switch provides a 15 A contact rating at 480 V AC
- Switch has a SPDT contact form
- Lever actuator length is 1.05 in, allowing for a compact design
Top product applications:
- Industrial Control Panels
- Automotive Systems
- Medical Equipment Controls
Snap Action Switch, Hinge Roller, Lever, Short, AC Contact Rating - Snap Action Switch 15 A @ 480 V, DC Contact Rating - Snap Action Switch 15 A @ 14 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.05 in, Height - Snap Action Switch 1.05 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Solder Lug, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.50
- Package Height: 0.70
- Package Weight: 0.07
Product info last updated on January 13, 2026 12:33pm UTC
Category: Industrial Electrical Controls and Automation
