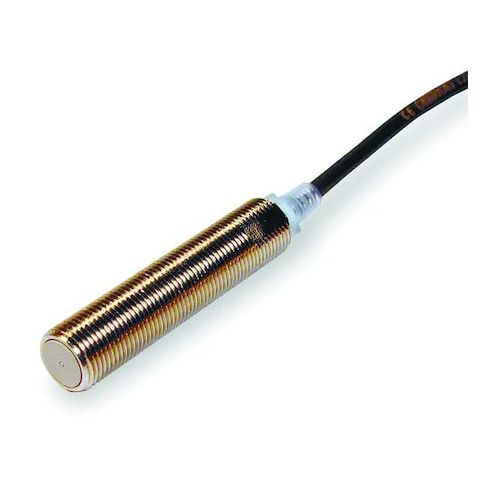

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded MPN:E2E2-X2Y1
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded
This Omron inductive proximity sensor is a compact, cylindrical device that detects the presence or absence of metal objects within a 2mm range. Ideal for use in industrial settings, it operates within a wide temperature range of -40 to 185°F and can withstand harsh environments with an IP67 rating. The sensor is powered by 24-240V AC and features a shielded design for reduced electromagnetic interference. Its 2-wire output and 200mA current load make it suitable for a variety of applications, including automation, robotics, and material handling. Its compact size and durable design make it a reliable choice for demanding industrial environments.
Top product features:
- Cylindrical design allows for compact installation in tight spaces
- Inductive technology detects presence of metal objects without physical contact
- Shielded construction reduces electromagnetic interference and improves signal reliability
Top product applications:
- Automotive industry for detecting metal objects in tight spaces
- Industrial automation for detecting metal parts on conveyor belts
- Medical devices for detecting metal instruments or equipment
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 24 to 240V AC, Shielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 3, 4, 6, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.70
- Package Height: 0.50
- Package Weight: 0.01
Product info last updated on January 13, 2026 12:28pm UTC
Category: Industrial Electrical Controls and Automation
