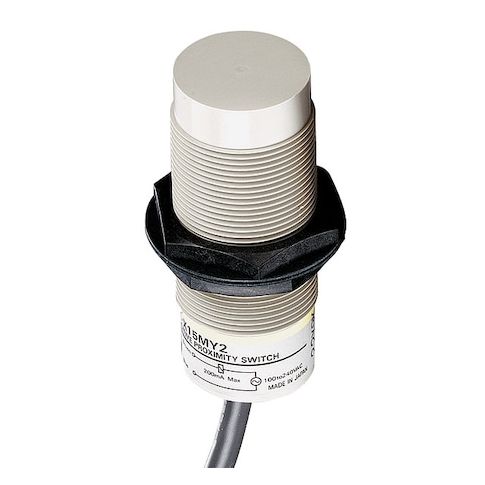

Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., Plastic, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E2K-X15ME2
Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., Plastic, 2 m, Bare Wire, 3 Wires, Unshielded
The Omron Capacitive Cylindrical Proximity Sensor is a versatile and reliable solution for detecting objects in various applications. With a maximum detecting distance of 15 mm and a maximum current load of 200mA, this sensor is ideal for use in industrial settings, such as manufacturing, packaging, and material handling. Its compact size and heat-resistant ABS case make it suitable for use in harsh environments. The sensor's 3-wire NPN output and unshielded design provide flexibility and ease of use. Perfect for applications such as detecting metal objects, monitoring conveyor belts, and controlling machinery.
Top product features:
- Capacitive sensing technology allows for detection of objects within a 15 mm range
- 3 wire NPN output circuit provides a simple and reliable way to interface with electronic systems
- Unshielded design enables flexibility in placement and installation without interference concerns
Top product applications:
- Automotive applications due to its heat resistant ABS material and wide operating temperature range
- Machine vision systems where the cylindrical shape and unshielded design allow for flexibility in placement
- Assembly lines where the 2 m cable and 3 wire NPN output circuit type enable easy integration with existing equipment
Capacitive Cylindrical Proximity Sensor, Capacitive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 1, 12, 13, 4, IP Rating IP66, Case Material Heat Resistant ABS, Length 41 mm, Operating Temp. Range 14 Degrees to 131 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.40
- Package Height: 2.80
- Package Weight: 0.45
Product info last updated on January 13, 2026 12:45pm UTC
Category: Industrial Electrical Controls and Automation
