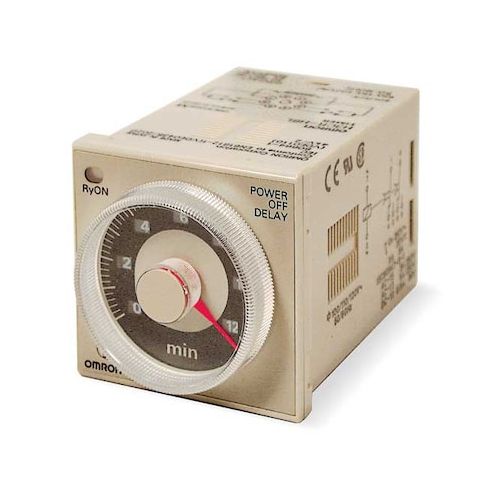

Single Function Time Delay Relay, Square, Off Delay, 1 Functions 120V AC, DPDT MPN:H3CR-H8L-AC100120S
Single Function Time Delay Relay, Square, Off Delay, 1 Functions 120V AC, DPDT
The Omron Single Function Time Delay Relay is a versatile and reliable solution for applications requiring precise timing control. This compact, square-shaped relay features a DPDT contact form and can handle up to 5A at 250V AC. With a minimum time setting of 0.05 seconds and a maximum of 12 seconds, it's ideal for use in industrial control systems, lighting control, and security systems. The analog dial adjustment method provides easy setup, and the relay's durable construction ensures reliable operation in a variety of environments. Its compact size and surface-mount design make it perfect for space-constrained applications.
Top product features:
- Time Delay Function: Provides a power off delay function that allows the user to set a time interval before the relay turns off.
- Adjustable Delay Time: Allows the user to set a delay time between 0.05 seconds and 12 seconds using an analog dial.
- DPDT Contact Form: Offers a double-pole double-throw (DPDT) contact form that can handle up to 5 amps at 250 volts AC.
Top product applications:
- Industrial Automation: The Omron Single Function Time Delay Relay can be used to control and automate industrial processes, such as delayed start and stop functions for machinery and equipment.
- Home Automation: This product can be used in home automation systems to control lights, appliances, and other devices with a delayed start or stop function, adding a level of convenience and automation to home systems.
- Laboratory Equipment: The Omron Single Function Time Delay Relay can be used in laboratory settings to control and automate equipment, such as delayed start and stop functions for heating and cooling systems, and other laboratory equipment.
Single Function Time Delay Relay, Adjustment Method Analog Dial, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Contact Rating (AC) 5 A @ 250V, Current Rating 5 A, Number of Delay Functions 1, Delay Function Power Off Delay, Electrical Connection Socket, IP Rating IP40, Input Voltage 100 to 120V AC, Minimum Time Setting 0.05 sec, Maximum Time Setting 12 sec, Number of Pins 8, Sealing Enclosed, Mounting Style Surface, Body Depth 2.51 in, Body Height 1.89 in, Body Width 1.89 in
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 4.70
- Package Weight: 0.25
Product info last updated on January 14, 2026 11:35pm UTC
Category: Industrial Electrical Controls and Automation
