Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded MPN:E2E2-X10Y2
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded

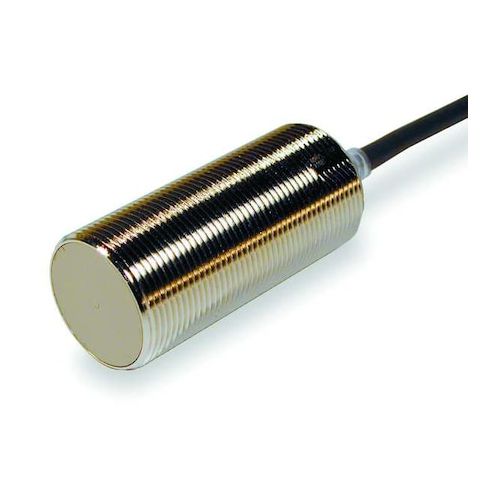

This Omron inductive proximity sensor is a reliable and versatile solution for detecting objects within a 10mm distance. Its compact cylindrical design and 30mm diameter make it ideal for use in a variety of applications, including industrial automation, robotics, and material handling. The sensor operates at 25Hz and can handle 24-240V AC power, making it suitable for use in a range of environments. Its shielded design and IP67 rating ensure reliable performance in harsh conditions, while its 2m cable and 300mA current load allow for easy integration into existing systems.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces.
- Shielding reduces electromagnetic interference and improves sensor accuracy.
- Operating frequency of 25 Hz enables reliable detection of objects at a distance of up to 10 mm.
Top product applications:
- Industrial Automation Systems
- Automotive Manufacturing Lines
- Medical Device Assembly Lines
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 24 to 240V AC, Shielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 1, 12, 13, 3, 4, 6, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 6.10
- Package Height: 0.70
- Package Weight: 0.60
Product info last updated on January 13, 2026 2:06pm UTC
Category: Industrial Electrical Controls and Automation
