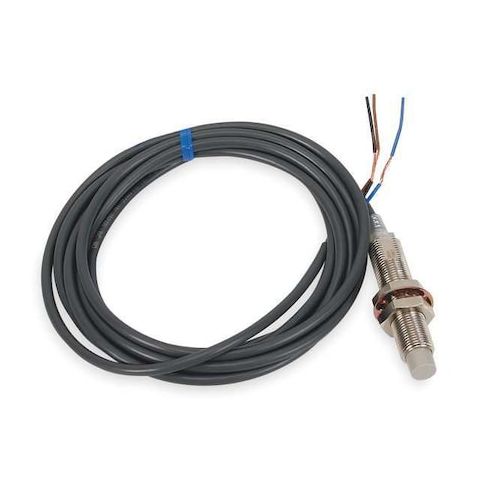

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E2E2-X5MY1-US
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded
This Omron inductive proximity sensor is a compact and reliable solution for detecting objects within a 5mm range. Its cylindrical design and 12mm diameter make it ideal for use in tight spaces and industrial applications. The sensor operates within a wide voltage range of 24-240V AC and can withstand temperatures from -40°C to 185°F. With a maximum current load of 200mA, it can be easily integrated into a variety of systems. Suitable for use in harsh environments, this sensor is perfect for applications in food processing, packaging, and material handling where reliable detection is crucial.
Top product features:
- Cylindrical shape allows for versatile mounting options
- Detects objects up to 5 mm away
- Operates at temperatures between -40 and 185 degrees Fahrenheit
Top product applications:
- Automotive applications where a compact and reliable sensor is required
- Machine guarding and safety systems to prevent accidents and injuries
- Industrial automation and robotics where precise detection is necessary
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 24 to 240V AC, Unshielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 4, 6, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.30
- Package Height: 0.80
- Package Weight: 0.15
Product info last updated on February 1, 2026 1:59am UTC
Category: Industrial Electrical Controls and Automation
