Safety Light Curtain, PNP, 36 Beams MPN:F3SG4RE0750P30
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G101701834

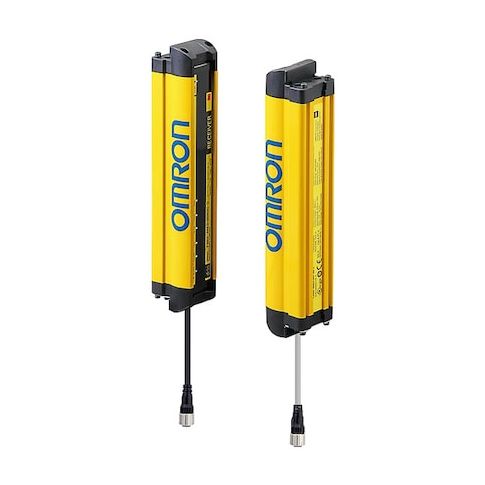

Safety Light Curtain, PNP, 36 Beams
The Omron Safety Light Curtain is a reliable and versatile solution for industrial safety applications, providing a maximum sensing distance of 65 ft and a response time of 5-15 msec (on to off) and 25-75 msec (off to on). With 36 beams and a beam spacing of 10 mm, it offers a wide coverage area and precise detection capabilities. Suitable for use in a variety of settings, including manufacturing and material handling facilities, this safety light curtain helps prevent accidents and ensure a safe working environment. Its compact design and IP67 rating make it a durable and easy-to-install option.
Top product features:
- Sensing distance up to 65 ft to detect objects from a safe distance
- Effective aperture angle of +/-2.5 Degrees @ 3 m to provide a wide sensing area
- Response time of 25 to 75 msec (Off to On) and 5 to 15 msec (On to Off) to quickly detect and respond to changes
Top product applications:
- Machine Guarding
- Automated Material Handling Systems
- Robot Safety
- Safety Light Curtain, Max. Sensing Distance 65 ft, Input Voltage 24V DC, Safety Output Ratings 300 mA @ 24V DC, Color Yellow, Housing Material Aluminum, NEMA Rating IP67, Protected Height 750 mm, IP Rating IP65, IP67, Beam Spacing 10 mm, Number of Beams 36, Effective Aperture Angle +/-2.5 Degrees @ 3 m, Light Source 870 nm IR LED, Response Time 25 to 75 msec (Off to On)
- 5 to 15 msec (On to Off), Overall Height 30.71 in, Width 40 mm, Depth 35 mm, Cable Length Not Applicable
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 90 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 45.10
- Package Width: 5.90
- Package Height: 3.20
- Package Weight: 7.40
- Restricted States: CA
Product info last updated on January 23, 2026 10:52pm UTC
Category: Industrial Electrical Controls and Automation
