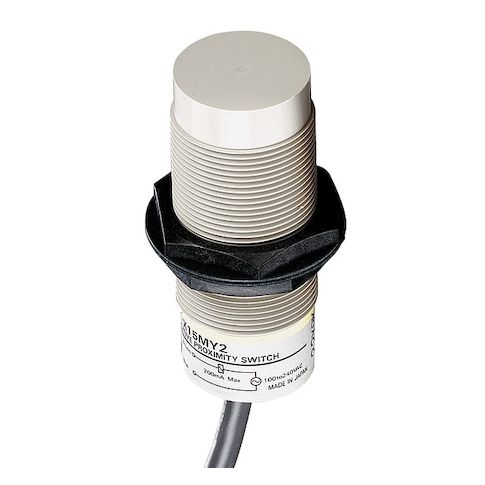

Capacitive, Cylindrical Proximity Sensor, 12 mm Dia., Plastic, 2 m, Bare Wire, 2 Wires, Unshielded MPN:E2K-X4MY2
Capacitive, Cylindrical Proximity Sensor, 12 mm Dia., Plastic, 2 m, Bare Wire, 2 Wires, Unshielded
The Omron Capacitive Cylindrical Proximity Sensor is a reliable and efficient solution for detecting objects in a variety of applications. With a detection distance of up to 4 mm, this sensor is ideal for use in industrial automation, robotics, and material handling systems. Its compact design and plastic construction make it easy to integrate into existing systems. The sensor's 2-wire output and 90-250V AC power requirement make it simple to install and connect. Suitable for use in harsh environments, this sensor is rated IP66 and operates in temperatures from -13°F to 158°F, making it a versatile and dependable choice.
Top product features:
- Capacitive sensing technology detects objects within a 4 mm range
- Detects objects through non-contact means without physical touch
- Operating frequency of 10 Hz allows for reliable and consistent detection
Top product applications:
- Automatic Door Openers
- Machine Vibration Monitoring
- Material Detection in Production Lines
Capacitive Cylindrical Proximity Sensor, Capacitive, 12 mm, Proximity Sensor Power Requirement 90 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 1, 12, 13, 4, IP Rating IP66, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.40
- Package Height: 2.60
- Package Weight: 0.30
