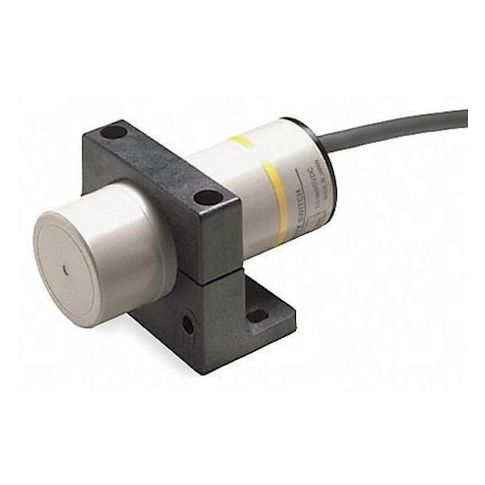

Capacitive, Cylindrical Proximity Sensor, 34 mm Dia., Plastic, 2 m, Bare Wire, 3 Wires, Unshielded MPN:E2K-C25ME2
Capacitive, Cylindrical Proximity Sensor, 34 mm Dia., Plastic, 2 m, Bare Wire, 3 Wires, Unshielded
This Omron capacitive proximity sensor is a reliable and versatile solution for detecting objects in a wide range of applications. Its compact cylindrical design and 34mm diameter make it easy to integrate into existing systems. With a maximum detecting distance of 25mm and a frequency of 70Hz, it can accurately detect objects with precision. Suitable for use in harsh environments, the sensor is rated IP66 and operates in temperatures from -13 to 158°F. Its 3-wire NPN output and 10-40V DC power requirement make it easy to connect and integrate into existing control systems.
Top product features:
- Capacitive sensing technology allows for accurate detection of objects within a 25 mm distance
- Operating frequency of 70 Hz enables reliable detection of moving objects
- Output circuit is a 3 wire NPN configuration for easy integration with various control systems
Top product applications:
- Automotive Interiors
- Machine Vision Systems
- Robotics and Automation
Capacitive Cylindrical Proximity Sensor, Capacitive, 34 mm, Proximity Sensor Power Requirement 10 to 40V DC, Unshielded, Proximity Sensor Operating Frequency 70 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 25 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 1, 12, 13, 4, IP Rating IP66, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 2.80
- Package Weight: 0.50
Product info last updated on March 13, 2026 4:39pm UTC
Category: Industrial Electrical Controls and Automation
