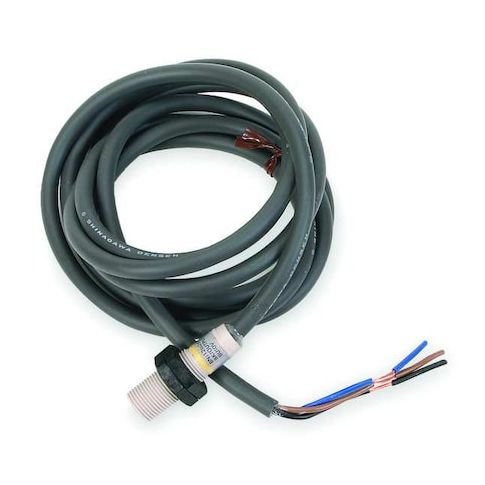

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Polyarylate Resin, 2 m, Bare Wire, 3 Wires, Shielded MPN:E2F-X2F1
Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Polyarylate Resin, 2 m, Bare Wire, 3 Wires, Shielded
The Omron Cylindrical Inductive Proximity Sensor is a reliable and efficient solution for detecting objects in various applications. With a 12mm diameter and 2m cable, it can be easily integrated into machines and equipment. The sensor operates at 1,500Hz and has a maximum detecting distance of 2mm, making it suitable for precise object detection. The shielded design and IP68 rating ensure durability and resistance to harsh environments. The LED indication and 3-wire PNP output circuit enable easy integration with control systems. Ideal for use in industrial automation, robotics, and material handling applications, this sensor provides accurate and reliable detection.
Top product features:
- Inductive proximity sensing technology
- Detects objects up to 2 mm away
- LED indication for status monitoring
Top product applications:
- Machine Vision Inspection
- Automated Pick and Place Assembly
- Robotics and Automation Control Systems
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 1,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 4X, IP Rating IP68, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA, Description/Special Features LED Indication
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.50
- Package Height: 2.80
- Package Weight: 0.35
Product info last updated on February 8, 2026 1:39pm UTC
Category: Industrial Electrical Controls and Automation
