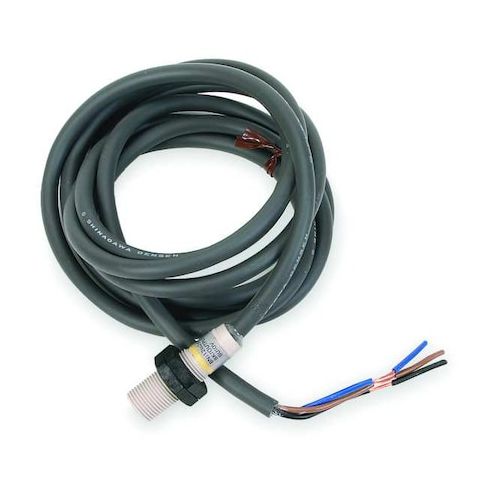

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Polyarylate Resin, 2 m, Bare Wire, 2 Wires, Shielded MPN:E2F-X5Y2-US
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Polyarylate Resin, 2 m, Bare Wire, 2 Wires, Shielded
This Omron inductive proximity sensor is a compact and reliable solution for detecting objects within a 5mm range. Suitable for a variety of applications, including industrial automation, robotics, and material handling, it can be used to monitor distances and detect the presence of objects in harsh environments. With a shielded design and IP68 rating, it provides excellent noise immunity and protection against dust and water. The sensor's 2-wire output and 20-264V AC power requirement make it easy to integrate into existing systems, while its operating temperature range of -13 to 158°F ensures reliable performance in diverse conditions.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces
- Inductive sensing technology detects metal objects without physical contact
- Shielded design provides immunity to electromagnetic interference
Top product applications:
- Industrial Automation
- Robotics and Machine Vision
- Material Handling Systems
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 264V AC, Shielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 1, 12, 13, 3, 4, 6, IP Rating IP68, Case Material ABS, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 300mA
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 65 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 2.70
- Package Weight: 0.35
Product info last updated on January 15, 2026 7:57am UTC
Category: Industrial Electrical Controls and Automation
